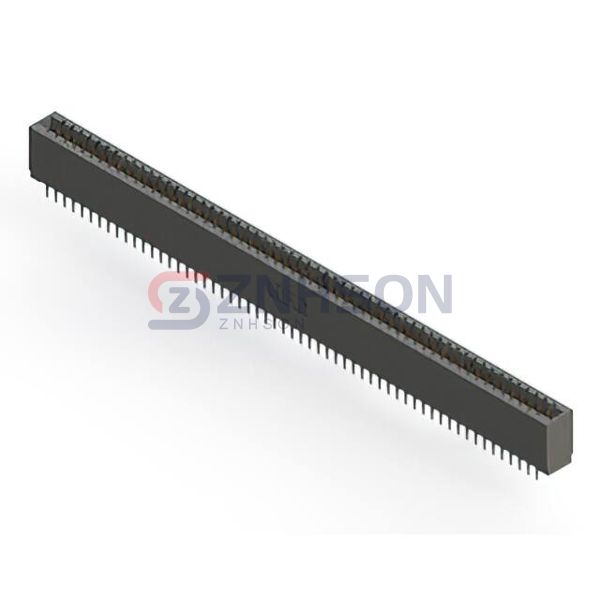

746-114-560-201
EDAC Inc.
EDAC Inc.
746 SERIES ULTRA-MATE CARD EDGE
$16.76
Available to order
Reference Price (USD)
1+
$16.76320
500+
$16.595568
1000+
$16.427936
1500+
$16.260304
2000+
$16.092672
2500+
$15.92504
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 746-114-560-201 by EDAC Inc. sets the standard for Card Edge Connectors - Edgeboard Connectors with its innovative design and exceptional reliability. These connectors are optimized for high-density applications, offering a perfect balance between size and performance. Commonly used in server backplanes, data storage systems, and military communications, the 746-114-560-201 delivers unmatched connectivity solutions for critical operations.
Specifications
- Product Status: Active
- Card Type: Non Specified - Dual Edge
- Gender: Female
- Number of Positions/Bay/Row: 57
- Number of Positions: 114
- Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows: 2
- Pitch: 0.125" (3.18mm)
- Read Out: Dual
- Features: -
- Mounting Type: Through Hole
- Termination: Press-Fit
- Contact Material: Copper Alloy
- Contact Finish: Gold
- Contact Finish Thickness: 30.0µin (0.76µm)
- Contact Type: Cantilever, Make Before Break
- Color: Black
- Flange Feature: -
- Operating Temperature: -40°C ~ 105°C
