74ACT534SJ
Fairchild Semiconductor
Fairchild Semiconductor
IC FF D-TYPE SNGL 8BIT 20SOP
$0.51
Available to order
Reference Price (USD)
1+
$0.51000
500+
$0.5049
1000+
$0.4998
1500+
$0.4947
2000+
$0.4896
2500+
$0.4845
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic projects with the 74ACT534SJ Flip Flop from Fairchild Semiconductor, a leading product in the Integrated Circuits (ICs) - Logic family. This flip flop is engineered for precision and reliability, catering to applications like data acquisition systems and digital signal processing. Its robust construction ensures operation in harsh environments, making it suitable for military and defense applications. The 74ACT534SJ also shines in automotive electronics, providing stable performance under varying conditions. Choose Fairchild Semiconductor for superior logic solutions.
Specifications
- Product Status: Obsolete
- Function: Standard
- Type: D-Type
- Output Type: Tri-State, Inverted
- Number of Elements: 1
- Number of Bits per Element: 8
- Clock Frequency: 100 MHz
- Max Propagation Delay @ V, Max CL: 11.5ns @ 5V, 50pF
- Trigger Type: Positive Edge
- Current - Output High, Low: 24mA, 24mA
- Voltage - Supply: 4.5V ~ 5.5V
- Current - Quiescent (Iq): 40 µA
- Input Capacitance: 4.5 pF
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Supplier Device Package: 20-SOP
- Package / Case: 20-SOIC (0.209", 5.30mm Width)
Related Products
Texas Instruments
SN74LVC1G80QDCKTQ1
Texas Instruments
SN74HCT273DBR
Texas Instruments
SN74AHC16374DGGR
NXP USA Inc.
74LVC1G80GM,132
Motorola
MC415P
Texas Instruments
SN74LVC1G79DRLR
National Semiconductor
74LS534DC
Fairchild Semiconductor
74F825SPC
NXP USA Inc.

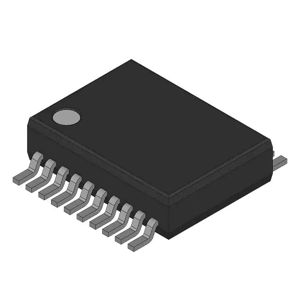

74HCT374DB,112
