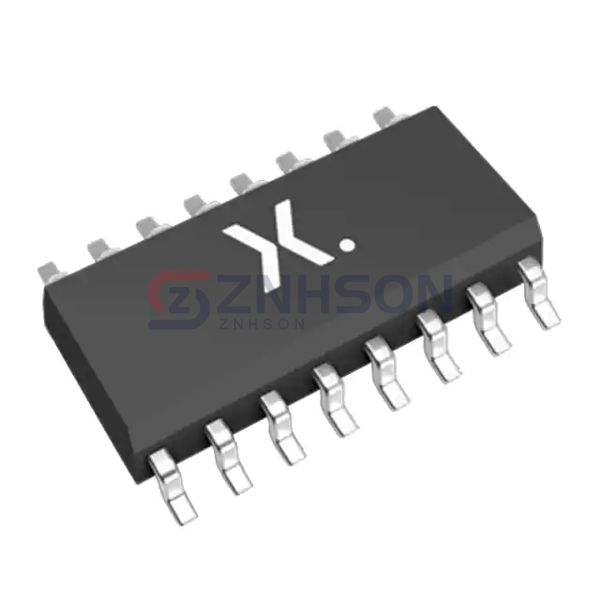

74HC109D-Q100J
Nexperia USA Inc.
Nexperia USA Inc.
IC FF JK TYPE DUAL 1BIT 16SO
$0.62
Available to order
Reference Price (USD)
2,500+
$0.17686
5,000+
$0.16545
12,500+
$0.15404
25,000+
$0.14605
62,500+
$0.14262
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 74HC109D-Q100J Flip Flop by Nexperia USA Inc. is a game-changer in the Logic - Flip Flops category of Integrated Circuits (ICs). With its exceptional data retention capabilities and minimal power consumption, this flip flop is perfect for battery-operated devices. It's commonly employed in GPS systems, smart home devices, and healthcare monitors. The 74HC109D-Q100J also excels in automotive infotainment systems, delivering consistent performance. Rely on Nexperia USA Inc. for logic components that combine efficiency and reliability.
Specifications
- Product Status: Active
- Function: Set(Preset) and Reset
- Type: JK Type
- Output Type: Complementary
- Number of Elements: 2
- Number of Bits per Element: 1
- Clock Frequency: 81 MHz
- Max Propagation Delay @ V, Max CL: 16ns @ 6V, 50pF
- Trigger Type: Positive Edge
- Current - Output High, Low: 5.2mA, 5.2mA
- Voltage - Supply: 2V ~ 6V
- Current - Quiescent (Iq): 4 µA
- Input Capacitance: 3.5 pF
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Supplier Device Package: 16-SO
- Package / Case: 16-SOIC (0.154", 3.90mm Width)
