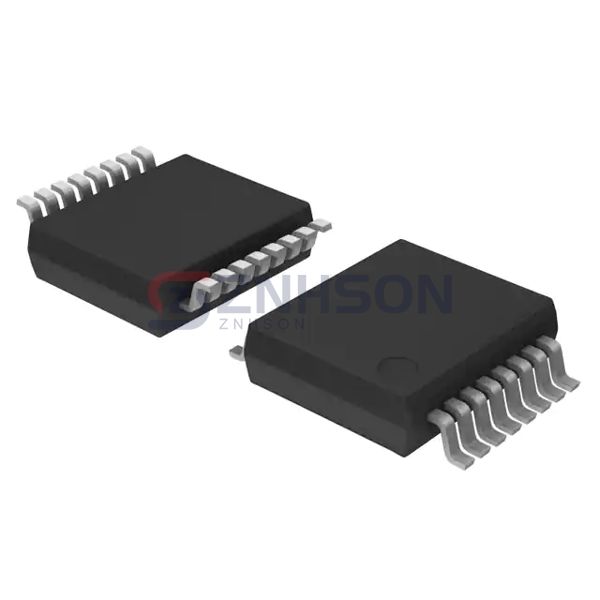

74HCT4052DB,118
Nexperia USA Inc.
Nexperia USA Inc.
IC MUX/DEMUX DUAL 4X1 16SSOP
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your signal path design with Nexperia USA Inc.'s 74HCT4052DB,118, a flagship product in our Analog Switches and Multiplexers category. This IC combines low distortion (<0.01% THD) with high off-isolation (>80dB at 1MHz), making it ideal for high-fidelity applications. The breakthrough architecture enables simultaneous sampling across multiple channels while maintaining signal purity. Key implementations include: industrial process control interfaces, semiconductor test handlers, MRI machine front-ends, and 5G base station signal conditioning. The 74HCT4052DB,118 meets stringent requirements for military-grade communications equipment and satellite payload management systems, offering radiation-hardened versions upon request.
Specifications
- Product Status: Obsolete
- Switch Circuit: DP4T
- Multiplexer/Demultiplexer Circuit: 4:1
- Number of Circuits: 2
- On-State Resistance (Max): 150Ohm
- Channel-to-Channel Matching (ΔRon): 6Ohm
- Voltage - Supply, Single (V+): 4.5V ~ 5.5V
- Voltage - Supply, Dual (V±): ±1V ~ 5V
- Switch Time (Ton, Toff) (Max): 60ns, 48ns
- -3db Bandwidth: 180MHz
- Charge Injection: -
- Channel Capacitance (CS(off), CD(off)): 3.5pF
- Current - Leakage (IS(off)) (Max): 2µA
- Crosstalk: -60dB @ 1MHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-SSOP (0.209", 5.30mm Width)
- Supplier Device Package: 16-SSOP
