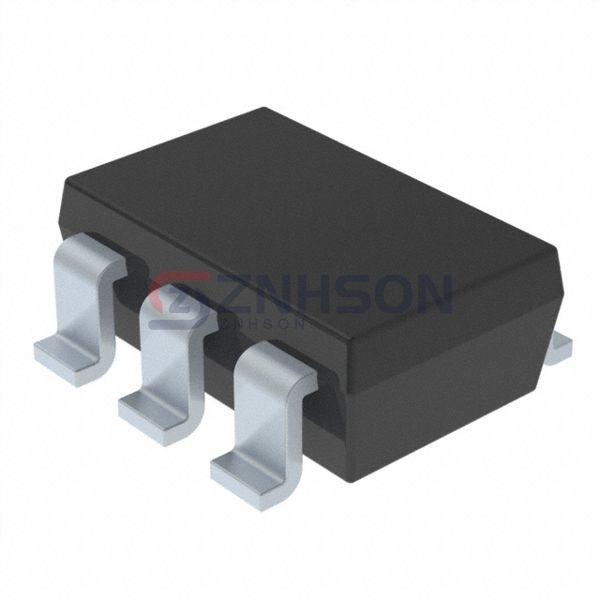

74LVC1G11W6-7
Diodes Incorporated
Diodes Incorporated
IC GATE AND 1CH 3-INP SOT26
$0.39
Available to order
Reference Price (USD)
3,000+
$0.06250
6,000+
$0.05500
15,000+
$0.04750
30,000+
$0.04500
75,000+
$0.04250
150,000+
$0.03750
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 74LVC1G11W6-7 by Diodes Incorporated sets new standards in the Logic - Gates and Inverters category of Integrated Circuits. Featuring advanced silicon-gate CMOS technology, this IC delivers superior performance in logic level conversion and signal gating applications. Notable characteristics include symmetrical output drive capability, balanced propagation delays, and 3-state outputs for bus-oriented applications. Electronic designers frequently incorporate this component in data acquisition systems, test equipment, and digital displays. Practical applications range from factory automation to renewable energy systems and telecommunications infrastructure. The 74LVC1G11W6-7's EMC compliance ensures trouble-free integration into complex electronic systems.
Specifications
- Product Status: Active
- Logic Type: AND Gate
- Number of Circuits: 1
- Number of Inputs: 3
- Features: -
- Voltage - Supply: 1.65V ~ 5.5V
- Current - Quiescent (Max): 40 µA
- Current - Output High, Low: 32mA, 32mA
- Logic Level - Low: 0.7V ~ 0.8V
- Logic Level - High: 1.7V ~ 2V
- Max Propagation Delay @ V, Max CL: 3.5ns @ 5V, 50pF
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Supplier Device Package: SOT-26
- Package / Case: SOT-23-6
