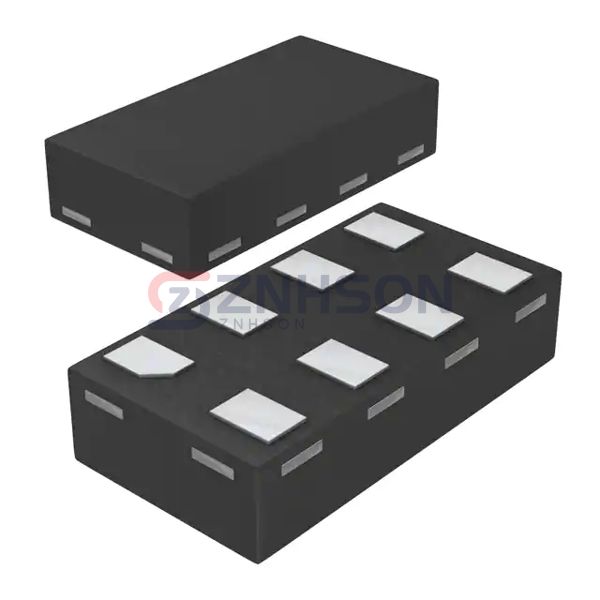

74LVC2G38GF,115
Nexperia USA Inc.
Nexperia USA Inc.
IC GATE NAND OD 2CH 2-INP 8XSON
$0.66
Available to order
Reference Price (USD)
5,000+
$0.18850
10,000+
$0.17550
25,000+
$0.16640
50,000+
$0.16250
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 74LVC2G38GF,115 by Nexperia USA Inc. sets new standards in the Logic - Gates and Inverters category of Integrated Circuits. Featuring advanced silicon-gate CMOS technology, this IC delivers superior performance in logic level conversion and signal gating applications. Notable characteristics include symmetrical output drive capability, balanced propagation delays, and 3-state outputs for bus-oriented applications. Electronic designers frequently incorporate this component in data acquisition systems, test equipment, and digital displays. Practical applications range from factory automation to renewable energy systems and telecommunications infrastructure. The 74LVC2G38GF,115's EMC compliance ensures trouble-free integration into complex electronic systems.
Specifications
- Product Status: Active
- Logic Type: NAND Gate
- Number of Circuits: 2
- Number of Inputs: 2
- Features: Open Drain
- Voltage - Supply: 1.65V ~ 5.5V
- Current - Quiescent (Max): 4 µA
- Current - Output High, Low: -, 32mA
- Logic Level - Low: 0.7V ~ 0.8V
- Logic Level - High: 1.7V ~ 2V
- Max Propagation Delay @ V, Max CL: 3.3ns @ 5V, 50pF
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Supplier Device Package: 8-XSON (1.35x1)
- Package / Case: 8-XFDFN
