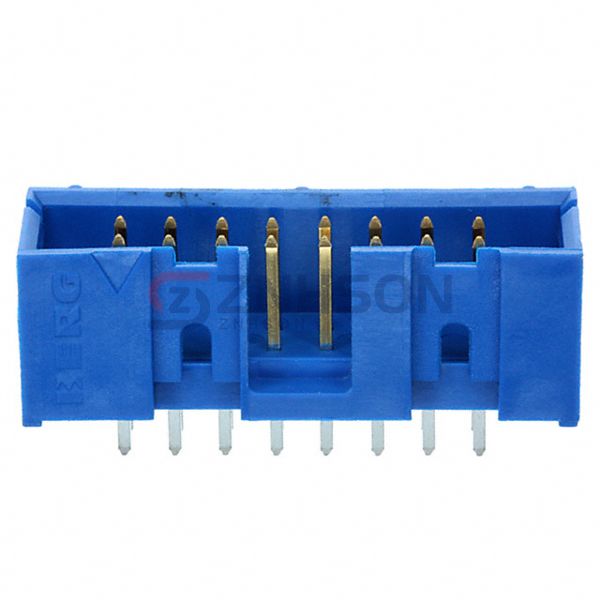

75869-103LF
Amphenol ICC (FCI)
Amphenol ICC (FCI)
CONN HEADER VERT 16POS 2.54MM
$2.04
Available to order
Reference Price (USD)
1+
$1.51000
21+
$1.36857
105+
$1.17305
504+
$0.97756
1,008+
$0.83790
5,019+
$0.74294
10,017+
$0.72618
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 75869-103LF male pin header by Amphenol ICC (FCI) offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose Amphenol ICC (FCI) for connectors that combine innovation with durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 16
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.236" (6.00mm)
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: -
- Insulation Height: 0.377" (9.57mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold, GXT™
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Thermoplastic, Glass Filled
- Features: Keying Slot
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Blue
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Preci-Dip
800-80-048-10-002101
TE Connectivity AMP Connectors
9-103795-0-26
Preci-Dip
350-10-157-00-013101
Samtec Inc.

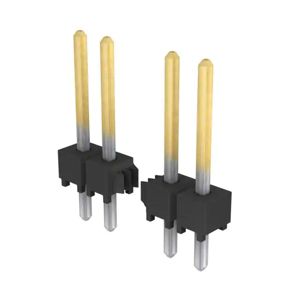

TSW-129-14-L-S
Sullins Connector Solutions

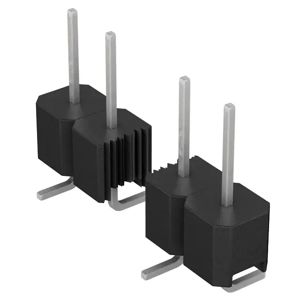

NREC034SABC-M30RC
Samtec Inc.

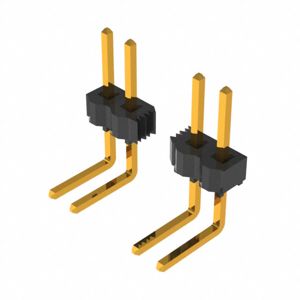

TSW-110-09-G-S-RE
Molex

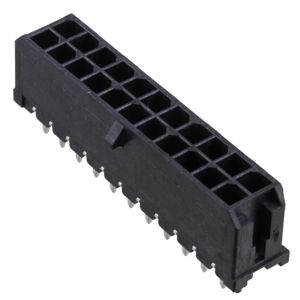

0430452228
Samtec Inc.

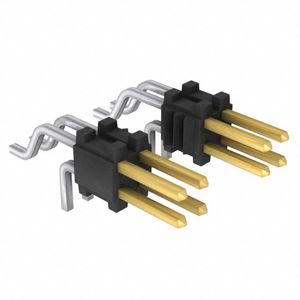

FTSH-124-02-L-MT
