76383-404LF
Amphenol ICC (FCI)
Amphenol ICC (FCI)

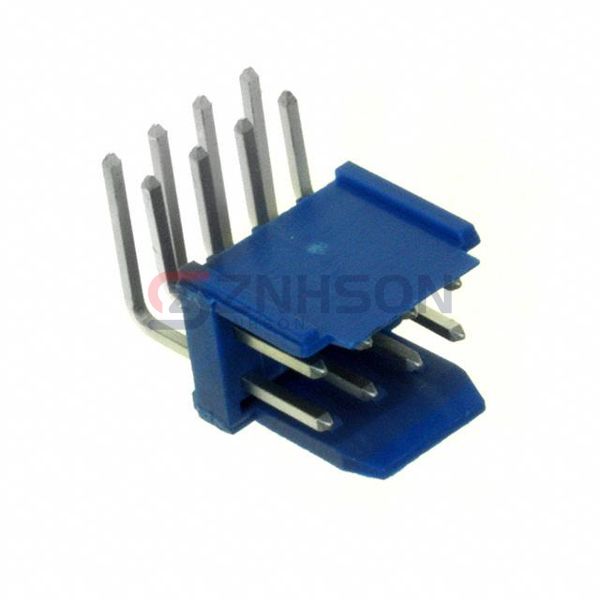

CONN HEADER R/A 8POS 2.54MM
$1.49
Available to order
Reference Price (USD)
1+
$1.10000
10+
$0.96600
100+
$0.83340
500+
$0.68184
1,000+
$0.60608
5,000+
$0.53032
10,000+
$0.50380
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 76383-404LF by Amphenol ICC (FCI) is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Amphenol ICC (FCI) delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 8
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 2 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: 0.197" (5.00mm)
- Contact Length - Post: 0.154" (3.91mm)
- Overall Contact Length: -
- Insulation Height: 0.307" (7.80mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 78.7µin (2.00µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyester, Glass Filled
- Features: -
- Operating Temperature: -40°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Blue
- Current Rating (Amps): 3A
- Voltage Rating: -
