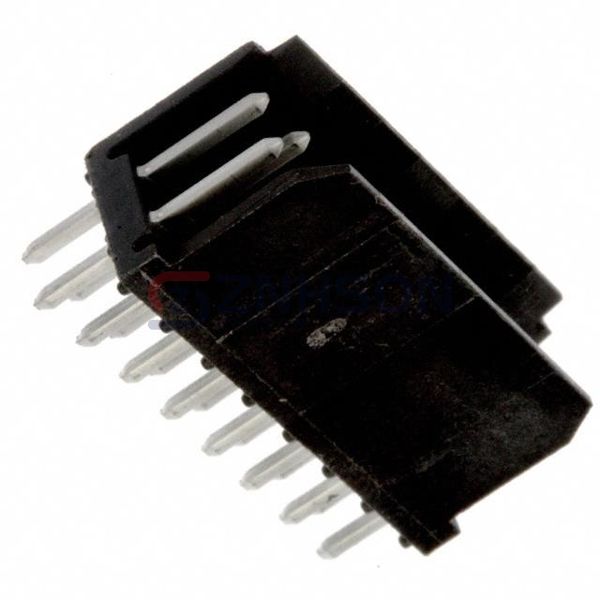

76385-408LF
Amphenol ICC (FCI)
Amphenol ICC (FCI)
CONN HEADER VERT 16POS 2.54MM
$2.31
Available to order
Reference Price (USD)
1+
$1.61000
27+
$1.37148
108+
$1.25222
513+
$1.04353
1,026+
$0.89445
5,022+
$0.79308
10,017+
$0.77519
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the 76385-408LF rectangular connector header from Amphenol ICC (FCI), a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the 76385-408LF adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. Amphenol ICC (FCI) guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 16
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 2 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: 0.197" (5.00mm)
- Contact Length - Post: 0.134" (3.40mm)
- Overall Contact Length: 0.411" (10.44mm)
- Insulation Height: 0.368" (9.35mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 78.7µin (2.00µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic, Glass Filled
- Features: -
- Operating Temperature: -40°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
