77311-818-21LF
Amphenol ICC (FCI)
Amphenol ICC (FCI)
CONN HEADER VERT 21POS 2.54MM
$1.16
Available to order
Reference Price (USD)
500+
$0.87966
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

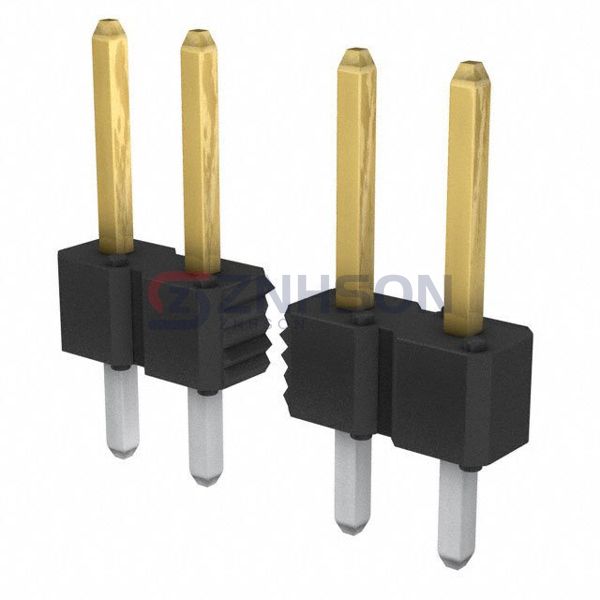

Discover the 77311-818-21LF rectangular connector header from Amphenol ICC (FCI), a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the 77311-818-21LF adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. Amphenol ICC (FCI) guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 21
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: 0.450" (11.43mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold or Gold, GXT™
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Thermoplastic
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A per Contact
- Voltage Rating: -
Related Products
Sullins Connector Solutions
PBC01SAFN
Samtec Inc.
TMM-136-01-T-D-SM
Samtec Inc.
BBS-125-G-G
Samtec Inc.
ZSS-105-04-L-D-728
TE Connectivity AMP Connectors
3-647167-5
Preci-Dip
350-10-136-00-006101
TE Connectivity AMP Connectors
1-87220-2
Samtec Inc.

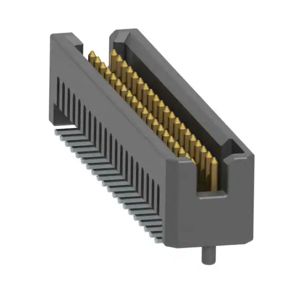

TFM-120-02-S-D-A-K-TR
TE Connectivity AMP Connectors

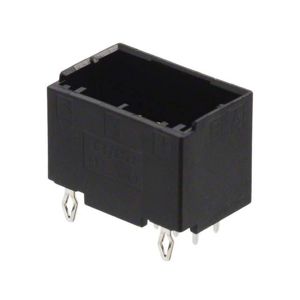

1-1827875-6
