78548-218HLF
Amphenol ICC (FCI)
Amphenol ICC (FCI)

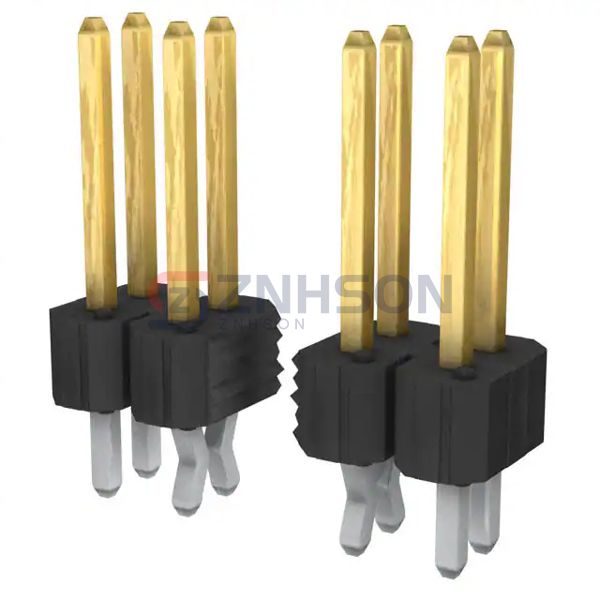

CONN HEADER VERT 18POS 2.54MM
$0.71
Available to order
Reference Price (USD)
1+
$0.74000
10+
$0.65100
100+
$0.56140
500+
$0.45936
1,000+
$0.40832
5,000+
$0.35728
10,000+
$0.33942
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the 78548-218HLF rectangular connector header from Amphenol ICC (FCI), a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the 78548-218HLF adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. Amphenol ICC (FCI) guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 18
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Kinked Pin, Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: 0.538" (13.67mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold or Gold, GXT™
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: -
- Contact Material: Phosphor Bronze
- Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT)
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
