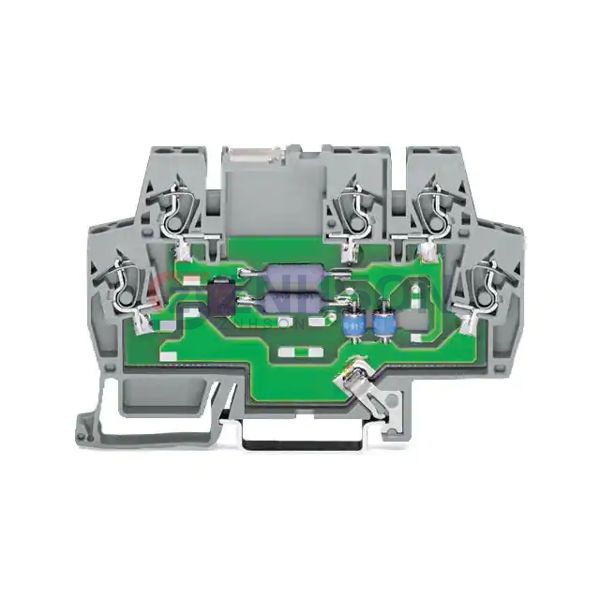

792-801
WAGO Corporation
WAGO Corporation
SP-D 24VDC X2-C
$104.52
Available to order
Reference Price (USD)
1+
$104.52000
500+
$103.4748
1000+
$102.4296
1500+
$101.3844
2000+
$100.3392
2500+
$99.294
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your circuit protection with WAGO Corporation's 792-801, a premium TVS diode engineered for maximum surge suppression. Part of our comprehensive SPD solutions, this device offers symmetrical bidirectional protection with precise breakdown voltage characteristics. The 792-801 excels in protecting low-voltage circuits (3.3V to 24V) commonly found in microcontroller systems, sensors, and wireless modules. Its innovative design minimizes board space requirements while delivering robust protection against ESD (IEC 61000-4-2) and electrical fast transients (IEC 61000-4-4). Whether you're designing for automotive, industrial, or consumer applications, WAGO Corporation's TVS technology provides peace of mind against unpredictable voltage transients that could otherwise cause costly equipment failures.
Specifications
- Product Status: Active
- Type: -
- Form: Module Only
- Number of Poles: 1
- Voltage - Continuous Operating (Max) (MCOV): 23VAC, 33VDC
- Current - Discharge (Nom) (8/20µS): 5 kA
- Current - Discharge (Max) (8/20µS): 10 kA
- Current - Short Circuit Rating (SCRR): -
- Voltage - Protection Rating (VPR): -
- Voltage - Protection Level (VP) (2416): 50 V
- Operating Temperature: -40°C ~ 80°C
- Features: -
- Mounting Type: DIN Rail
- Approval Agency: EAC
