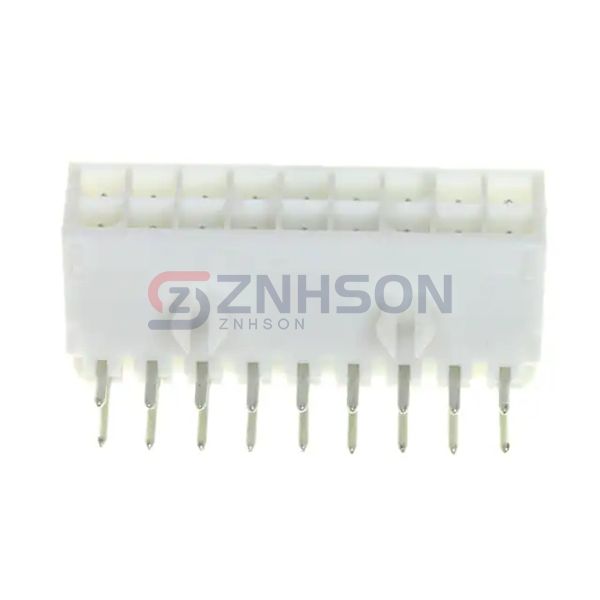

794105-1
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER R/A 18POS 4.14MM
$4.29
Available to order
Reference Price (USD)
400+
$4.28938
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 794105-1 male pin header by TE Connectivity AMP Connectors offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose TE Connectivity AMP Connectors for connectors that combine innovation with durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.163" (4.14mm)
- Number of Positions: 18
- Number of Rows: 2
- Row Spacing - Mating: 0.163" (4.14mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.145" (3.68mm)
- Overall Contact Length: -
- Insulation Height: 0.386" (9.80mm)
- Contact Shape: Circular
- Contact Finish - Mating: Tin-Lead
- Contact Finish Thickness - Mating: 150.0µin (3.81µm)
- Contact Finish - Post: Tin-Lead
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon
- Features: Board Lock
- Operating Temperature: -20°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: White
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 600VAC
