794624-8
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER SMD R/A 8POS 3MM
$2.17
Available to order
Reference Price (USD)
1+
$2.17000
500+
$2.1483
1000+
$2.1266
1500+
$2.1049
2000+
$2.0832
2500+
$2.0615
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 794624-8 by TE Connectivity AMP Connectors is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. TE Connectivity AMP Connectors delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Obsolete
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.118" (3.00mm)
- Number of Positions: 8
- Number of Rows: 2
- Row Spacing - Mating: 0.118" (3.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.290" (7.37mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin-Lead
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin-Lead
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon
- Features: Board Lock
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 250V
Related Products
Samtec Inc.
TMM-135-01-T-D
TE Connectivity AMP Connectors
292133-6
TE Connectivity AMP Connectors
1-5111374-0
Samtec Inc.
FTSH-148-01-F-D-RA
Mill-Max Manufacturing Corp.
335-40-127-00-160000
3M
929700-01-20
Amphenol Sine Systems Corp
ATP04-6P-BM12

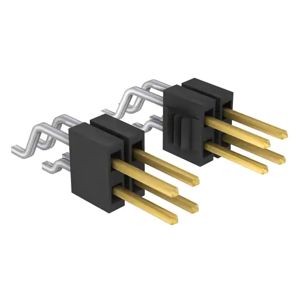

Samtec Inc.
FTSH-108-01-F-DH

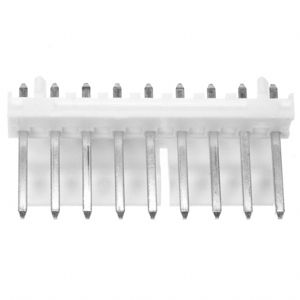

Molex
