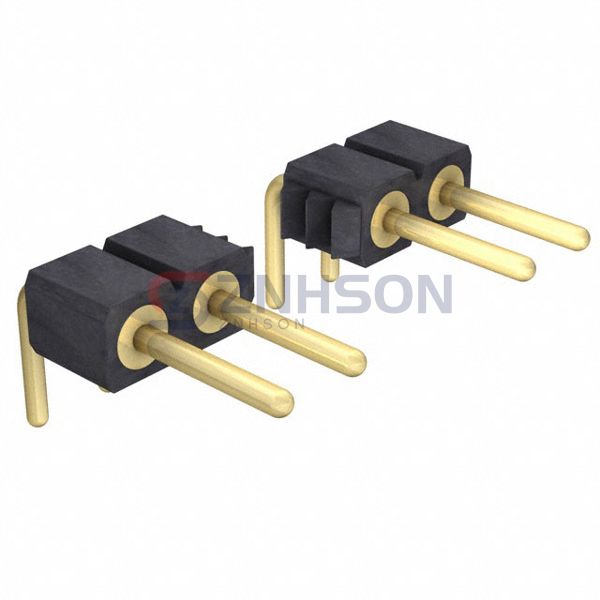

800-10-062-20-004101

Preci-Dip

Manufacturer

Preci-Dip

Description:

CONN HEADER R/A 62POS 2.54MM

Datasheet:

800-10-062-20-004101 Datasheet

$9.81

Available to order

Reference Price (USD)

70+

$6.86443

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Upgrade your electronic designs with the 800-10-062-20-004101 rectangular connector header by Preci-Dip. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the 800-10-062-20-004101 ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust Preci-Dip for connectors that deliver performance and reliability in every application.

Specifications

Product Status: Active
Connector Type: Header
Contact Type: Male Pin
Pitch - Mating: 0.100" (2.54mm)
Number of Positions: 62
Number of Rows: 1
Row Spacing - Mating: -
Number of Positions Loaded: All
Style: Board to Board
Shrouding: Unshrouded
Mounting Type: Through Hole, Right Angle
Termination: Solder
Fastening Type: Push-Pull
Contact Length - Mating: 0.195" (4.95mm)
Contact Length - Post: 0.126" (3.20mm)
Overall Contact Length: -
Insulation Height: 0.100" (2.54mm)
Contact Shape: Circular
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Contact Material: Brass
Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Features: -
Operating Temperature: -55°C ~ 125°C
Ingress Protection: -
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Current Rating (Amps): 3A
Voltage Rating: 150VDC
