802-10-020-20-001000

Mill-Max Manufacturing Corp.

Manufacturer

Mill-Max Manufacturing Corp.

Description:

CONN HEADER R/A 20POS 2.54MM

Datasheet:

802-10-020-20-001000 Datasheet

$7.33

Available to order

Reference Price (USD)

$5.83000

10+

$5.59400

25+

$5.12840

50+

$4.89520

100+

$4.66200

250+

$4.07924

500+

$3.96270

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Choose the 802-10-020-20-001000 rectangular connector header from Mill-Max Manufacturing Corp. for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. Mill-Max Manufacturing Corp. is committed to providing connectors that exceed industry expectations.

Specifications

Product Status: Active
Connector Type: Header
Contact Type: Male Pin
Pitch - Mating: 0.100" (2.54mm)
Number of Positions: 20
Number of Rows: 2
Row Spacing - Mating: 0.100" (2.54mm)
Number of Positions Loaded: All
Style: Board to Board
Shrouding: Unshrouded
Mounting Type: Through Hole, Right Angle
Termination: Solder
Fastening Type: Push-Pull
Contact Length - Mating: 0.195" (4.95mm)
Contact Length - Post: 0.126" (3.20mm)
Overall Contact Length: -
Insulation Height: 0.200" (5.08mm)
Contact Shape: Circular
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Contact Material: Brass Alloy
Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT)
Features: -
Operating Temperature: -
Ingress Protection: -
Material Flammability Rating: -
Insulation Color: Black
Current Rating (Amps): -
Voltage Rating: -

Shopping cart

802-10-020-20-001000

Reference Price (USD)

Specifications

Related Products

09185306904

PREC010SAAN-RC

92417-114HLF

GBC15DABN-M30

TMM-123-04-T-D

PRPC031DABN-RC

52601-S10-8LF

800-10-056-40-001101

350-10-149-00-018101

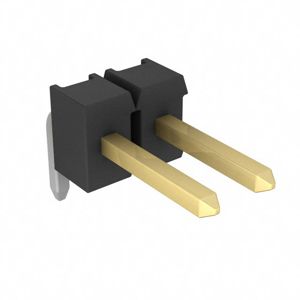

4-102978-0-02
