802-10-030-20-001000
Mill-Max Manufacturing Corp.
Mill-Max Manufacturing Corp.
CONN HEADER R/A 30POS 2.54MM
$10.53
Available to order
Reference Price (USD)
1+
$8.39000
10+
$8.04200
25+
$7.34280
50+
$6.99300
100+
$6.64340
250+
$5.94404
500+
$5.59440
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the 802-10-030-20-001000 rectangular connector header from Mill-Max Manufacturing Corp.. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the 802-10-030-20-001000 meets the highest industry standards. Mill-Max Manufacturing Corp. provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 30
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.195" (4.95mm)
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: -
- Insulation Height: 0.200" (5.08mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Brass Alloy
- Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT)
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Amphenol ICC (FCI)
95278-801-04LF
TE Connectivity AMP Connectors
1-440055-1
3M
929500-01-33
Samtec Inc.
TSM-135-02-F-DV
Samtec Inc.
TSM-120-04-S-SH-A-P-TR
Mill-Max Manufacturing Corp.
800-10-015-10-001000
Samtec Inc.

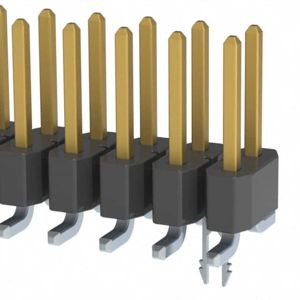

TSM-110-01-L-DV-LC-P
Preci-Dip

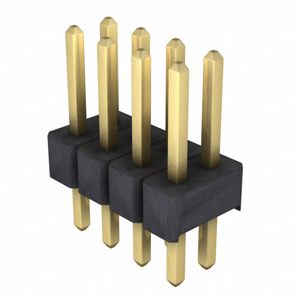

892-70-008-10-001101
Amphenol ICC (FCI)

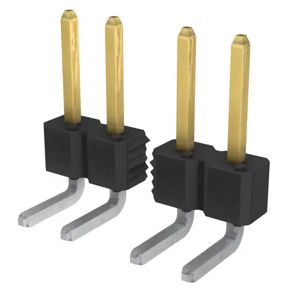

77315-118-20LF
