802-10-054-10-002000
Mill-Max Manufacturing Corp.
Mill-Max Manufacturing Corp.

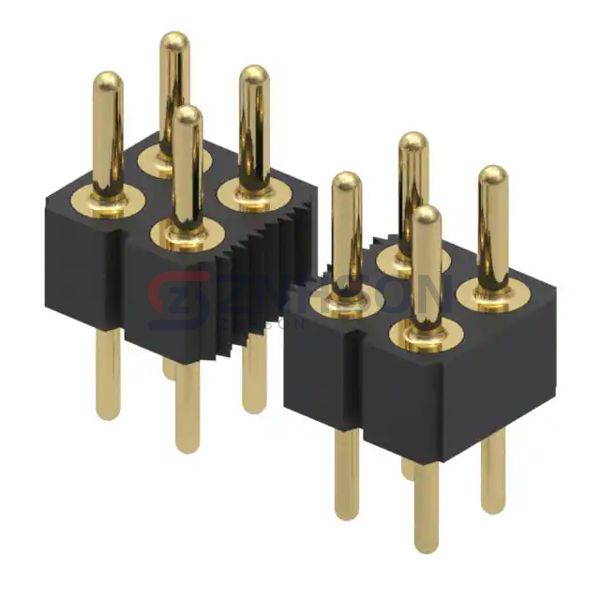

CONN HEADER VERT 54POS 2.54MM
$8.36
Available to order
Reference Price (USD)
1+
$7.73000
10+
$7.40800
25+
$6.76360
50+
$6.44160
100+
$6.11940
250+
$5.47528
500+
$5.15322
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 802-10-054-10-002000 by Mill-Max Manufacturing Corp. is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 802-10-054-10-002000 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Mill-Max Manufacturing Corp. ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 54
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.142" (3.61mm)
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: 0.385" (9.77mm)
- Insulation Height: 0.110" (2.79mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Brass Alloy
- Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT)
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
