802-V3-026-20-001101

Preci-Dip

Manufacturer

Preci-Dip

Description:

CONN HEADER R/A 26POS 2.54MM

Datasheet:

802-V3-026-20-001101 Datasheet

$4.60

Available to order

Reference Price (USD)

256+

$3.30945

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

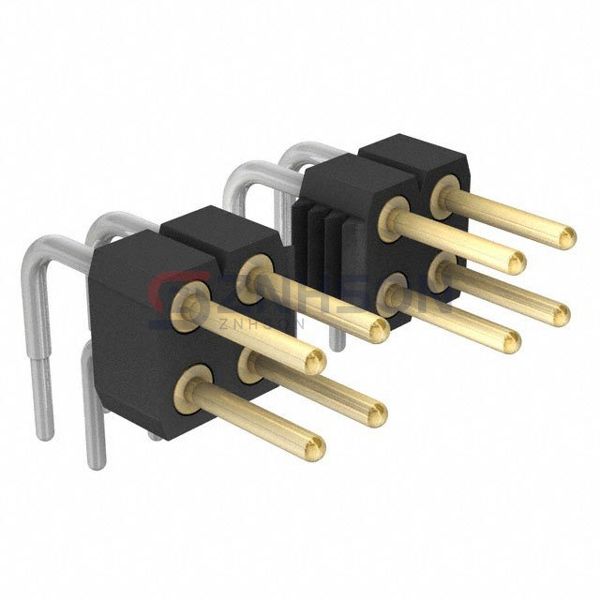

The 802-V3-026-20-001101 by Preci-Dip is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 802-V3-026-20-001101 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Preci-Dip ensures each connector meets rigorous quality standards for global compliance.

Specifications

Product Status: Active
Connector Type: Header
Contact Type: Male Pin
Pitch - Mating: 0.100" (2.54mm)
Number of Positions: 26
Number of Rows: 2
Row Spacing - Mating: 0.100" (2.54mm)
Number of Positions Loaded: All
Style: Board to Board
Shrouding: Unshrouded
Mounting Type: Through Hole, Right Angle
Termination: Solder
Fastening Type: Push-Pull
Contact Length - Mating: 0.195" (4.95mm)
Contact Length - Post: 0.126" (3.20mm)
Overall Contact Length: -
Insulation Height: 0.200" (5.08mm)
Contact Shape: Circular
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin
Contact Material: Brass
Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Features: -
Operating Temperature: -55°C ~ 125°C
Ingress Protection: -
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Current Rating (Amps): 3A
Voltage Rating: 150VDC
