803-83-056-10-269101
Preci-Dip
Preci-Dip

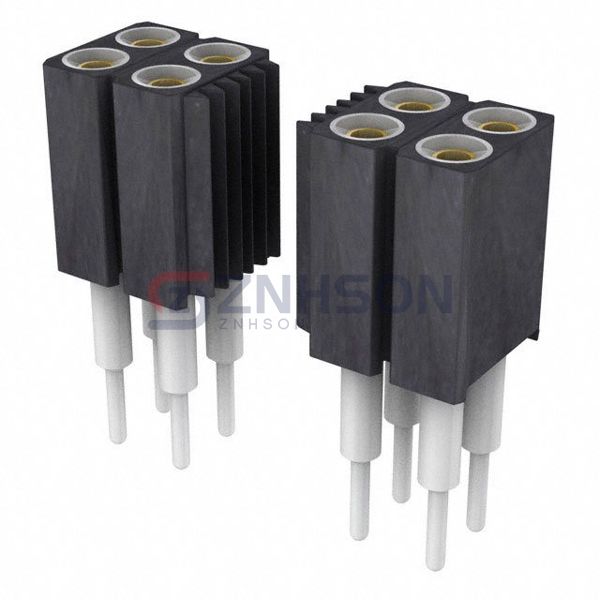

CONN SOCKET 56POS 0.1 GOLD PCB
$9.60
Available to order
Reference Price (USD)
70+
$7.23900
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Achieve seamless connectivity with 803-83-056-10-269101 Preci-Dip Rectangular Connectors - Headers, Receptacles, and Female Sockets. These connectors offer excellent electrical performance and mechanical stability for demanding applications. Suitable for telecommunications infrastructure, medical imaging, and industrial machinery, they ensure uninterrupted signal transmission. Features include high-current capacity, flame-retardant housings, and customizable pin configurations. Examples include base stations, MRI machines, and CNC equipment. Preci-Dip connectors are designed to meet the evolving needs of modern technology.
Specifications
- Product Status: Active
- Connector Type: Socket
- Contact Type: Female Socket
- Style: Board to Board
- Number of Positions: 56
- Number of Positions Loaded: All
- Pitch - Mating: 0.100" (2.54mm)
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 29.5µin (0.75µm)
- Insulation Color: Black
- Insulation Height: 0.435" (11.05mm)
- Contact Length - Post: 0.116" (2.95mm)
- Operating Temperature: -55°C ~ 125°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Tin
- Mated Stacking Heights: -
- Ingress Protection: -
- Features: -
- Current Rating (Amps): 3A
- Voltage Rating: -
