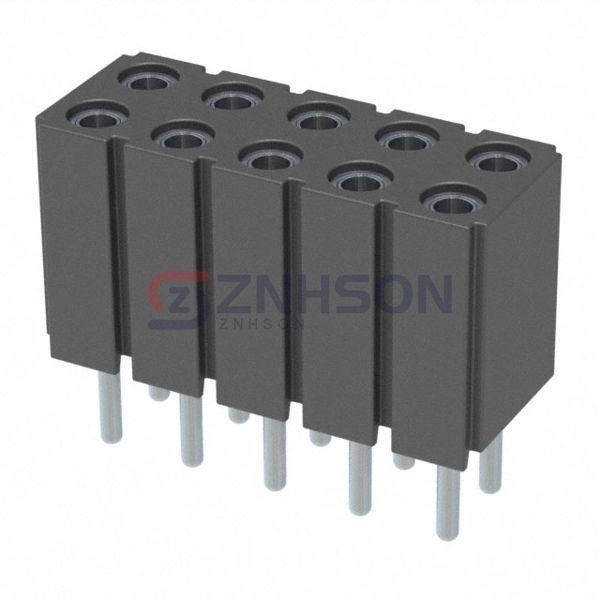

803-99-010-10-004000
Mill-Max Manufacturing Corp.
Mill-Max Manufacturing Corp.
CONN RCPT 10POS 0.1 TIN-LEAD PCB
$12.07
Available to order
Reference Price (USD)
50+
$13.14360
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic assemblies with 803-99-010-10-004000 Mill-Max Manufacturing Corp. Rectangular Connectors - Headers, Receptacles, and Female Sockets. These connectors provide secure, high-density connections for compact devices and complex systems. With options for surface mount, through-hole, and press-fit terminations, they cater to diverse design requirements. Ideal for wearable technology, test & measurement instruments, and LED lighting, Mill-Max Manufacturing Corp. connectors deliver consistent quality. Applications include fitness trackers, oscilloscopes, and architectural lighting systems.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Female Socket
- Style: Board to Board
- Number of Positions: 10
- Number of Positions Loaded: All
- Pitch - Mating: 0.100" (2.54mm)
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Tin-Lead
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Insulation Color: Black
- Insulation Height: 0.272" (6.91mm)
- Contact Length - Post: 0.118" (3.00mm)
- Operating Temperature: -55°C ~ 125°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Tin-Lead
- Mated Stacking Heights: -
- Ingress Protection: -
- Features: -
- Current Rating (Amps): 4.5A
- Voltage Rating: -
