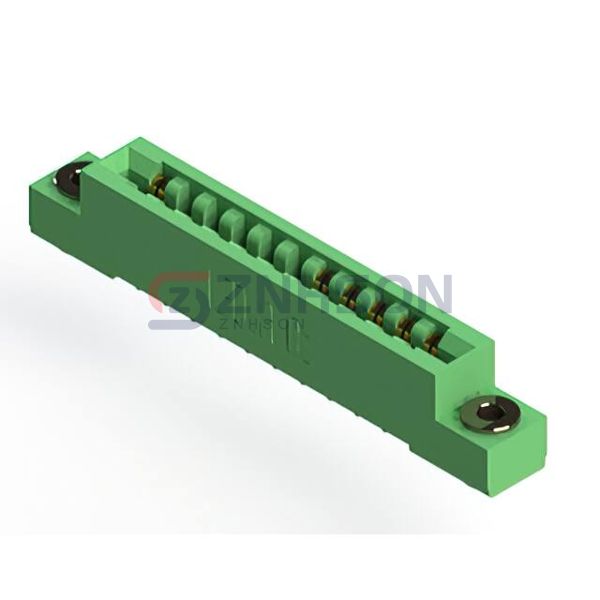

807-011-554-103
EDAC Inc.
EDAC Inc.
CONN EDGE DUAL FMALE 22POS 0.156
$137.15
Available to order
Reference Price (USD)
1+
$137.15120
500+
$135.779688
1000+
$134.408176
1500+
$133.036664
2000+
$131.665152
2500+
$130.29364
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 807-011-554-103 Edgeboard Connectors by EDAC Inc. offer a superior connection solution for today's advanced electronic systems. With their high-temperature resistance and excellent mating cycle life, these Card Edge Connectors are perfectly suited for use in power supplies, LED lighting, and HVAC controls. Choose EDAC Inc. for connectors that deliver both performance and peace of mind.
Specifications
- Product Status: Active
- Card Type: Non Specified - Dual Edge
- Gender: Female
- Number of Positions/Bay/Row: 11
- Number of Positions: 22
- Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows: 2
- Pitch: 0.156" (3.96mm)
- Read Out: Dual
- Features: -
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Contact Material: Copper Alloy
- Contact Finish: Gold
- Contact Finish Thickness: 10.0µin (0.25µm)
- Contact Type: Semi Bellows
- Color: Green
- Flange Feature: Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
- Operating Temperature: -40°C ~ 125°C
