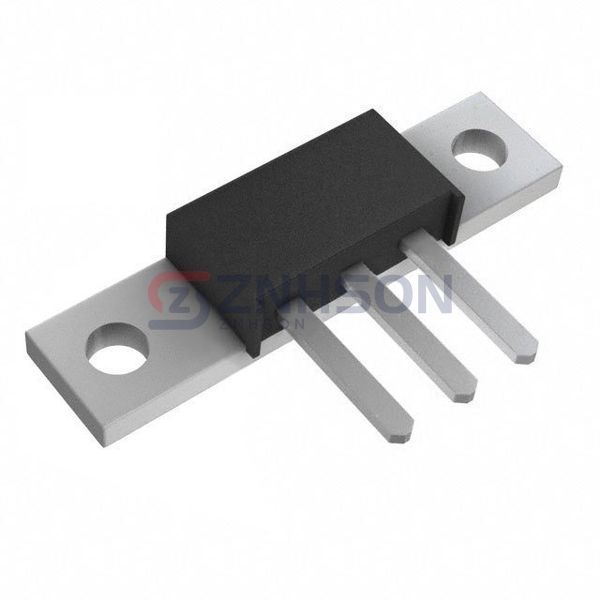

80CNQ045S2
SMC Diode Solutions
SMC Diode Solutions
DIODE ARRAY SCHOTTKY 45V PRM2
$15.93
Available to order
Reference Price (USD)
1,056+
$11.40102
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 80CNQ045S2 rectifier array from SMC Diode Solutions redefines efficiency in the Diodes - Rectifiers - Arrays classification. Its optimized chip geometry enables higher surge withstand capability, critical for automotive alternators and arc suppression circuits. This product shines in three-phase rectification and snubber networks, offering aerospace-grade reliability. SMC Diode Solutions's precision manufacturing ensures each 80CNQ045S2 meets stringent quality standards for mission-critical applications.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 45 V
- Current - Average Rectified (Io) (per Diode): 80A
- Voltage - Forward (Vf) (Max) @ If: 660 mV @ 80 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 5 mA @ 45 V
- Operating Temperature - Junction: -55°C ~ 150°C
- Mounting Type: Chassis Mount
- Package / Case: PRM2
- Supplier Device Package: PRM2
