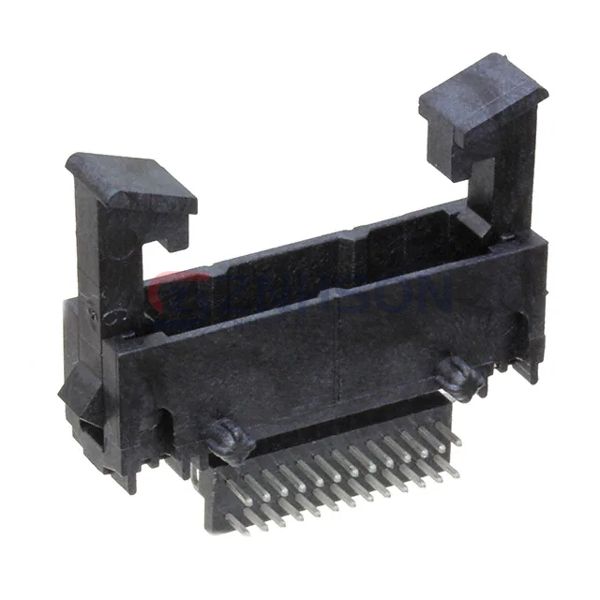

81026-560203-RB
3M
3M
CONN HEADER R/A 26POS 1.27MM
$10.27
Available to order
Reference Price (USD)
1+
$8.14000
10+
$7.80200
100+
$6.44480
500+
$5.42720
1,000+
$4.74880
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the 81026-560203-RB rectangular connector header from 3M for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. 3M is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 26
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Latch Lock/Eject Hooks, Long
- Contact Length - Mating: 0.140" (3.56mm)
- Contact Length - Post: 0.090" (2.29mm)
- Overall Contact Length: -
- Insulation Height: 0.310" (7.87mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Board Lock
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 0.75A
- Voltage Rating: -
Related Products
Amphenol ICC (FCI)
57102-F08-04ULF
Samtec Inc.
TMMH-126-04-S-D
Harwin Inc.
M50-3630342
Samtec Inc.
TSM-109-02-L-SV-A-P-TR
Preci-Dip
894-80-009-10-004101
Preci-Dip
892-80-078-20-002101
Samtec Inc.

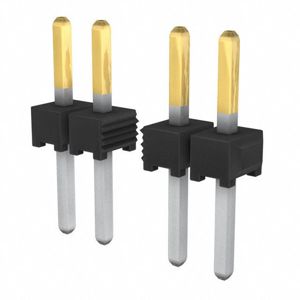

TMM-112-05-L-S
Preci-Dip

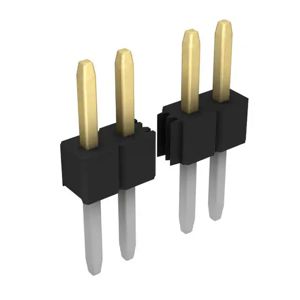

890-18-037-10-002101
