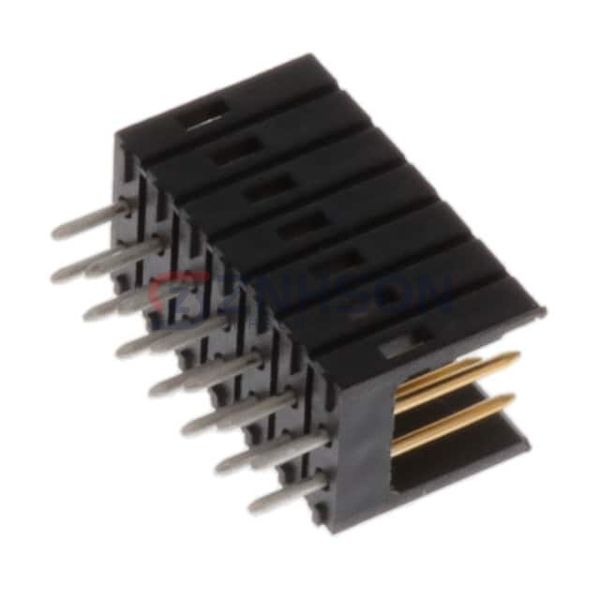

826469-7

TE Connectivity AMP Connectors

Manufacturer

TE Connectivity AMP Connectors

Description:

CONN HEADER VERT 14POS 2.54MM

Datasheet:

826469-7 Datasheet

$4.21

Available to order

Reference Price (USD)

$4.01000

10+

$3.84800

100+

$3.20660

500+

$2.72562

1,000+

$2.32479

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The 826469-7 from TE Connectivity AMP Connectors is a high-quality rectangular connector header designed for reliable interconnections in various electronic applications. These male pin headers feature a robust construction, ensuring secure and stable connections. Ideal for PCB mounting, the 826469-7 offers excellent electrical performance and durability. With options for different pin counts and pitches, this connector is versatile for numerous industrial and consumer electronics. Applications include automotive systems, telecommunications equipment, and home appliances. Choose TE Connectivity AMP Connectors for precision-engineered connectors that meet global standards.

Specifications

Product Status: Active
Connector Type: Header
Contact Type: Male Pin
Pitch - Mating: 0.100" (2.54mm)
Number of Positions: 14
Number of Rows: 2
Row Spacing - Mating: 0.100" (2.54mm)
Number of Positions Loaded: All
Style: Board to Board or Cable
Shrouding: Shrouded - 2 Wall
Mounting Type: Through Hole
Termination: Solder
Fastening Type: Latch Holder
Contact Length - Mating: -
Contact Length - Post: 0.126" (3.20mm)
Overall Contact Length: -
Insulation Height: 0.394" (10.00mm)
Contact Shape: Square
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 3.90µin (0.099µm)
Contact Finish - Post: Tin
Contact Material: Phosphor Bronze
Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Features: -
Operating Temperature: -55°C ~ 105°C
Ingress Protection: -
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Current Rating (Amps): -
Voltage Rating: -
