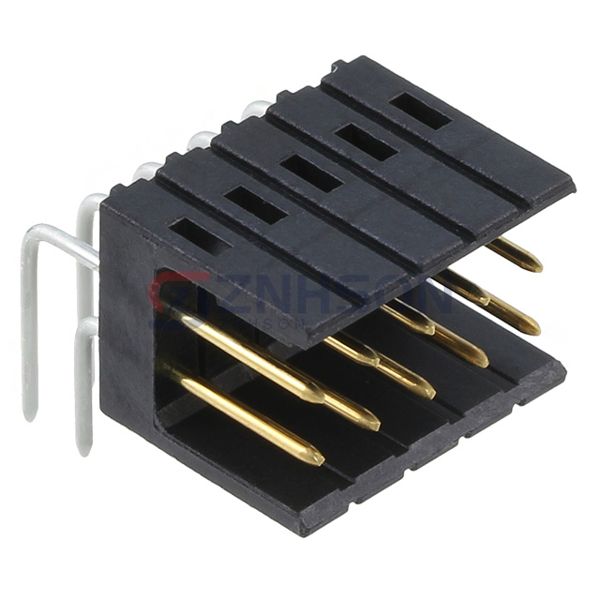

826470-5

TE Connectivity AMP Connectors

Manufacturer

TE Connectivity AMP Connectors

Description:

CONN HEADER R/A 10POS 2.54MM

Datasheet:

826470-5 Datasheet

$3.10

Available to order

Reference Price (USD)

$2.57000

10+

$2.46700

100+

$2.05590

500+

$1.74754

1,000+

$1.49056

5,000+

$1.33636

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Choose the 826470-5 rectangular connector header from TE Connectivity AMP Connectors for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. TE Connectivity AMP Connectors is committed to providing connectors that exceed industry expectations.

Specifications

Product Status: Active
Connector Type: Header
Contact Type: Male Pin
Pitch - Mating: 0.100" (2.54mm)
Number of Positions: 10
Number of Rows: 2
Row Spacing - Mating: 0.100" (2.54mm)
Number of Positions Loaded: All
Style: Board to Board or Cable
Shrouding: Shrouded - 2 Wall
Mounting Type: Through Hole, Right Angle
Termination: Solder
Fastening Type: Latch Holder
Contact Length - Mating: -
Contact Length - Post: 0.126" (3.20mm)
Overall Contact Length: -
Insulation Height: 0.339" (8.61mm)
Contact Shape: Square
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 3.90µin (0.099µm)
Contact Finish - Post: Tin
Contact Material: Phosphor Bronze
Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Features: -
Operating Temperature: -55°C ~ 105°C
Ingress Protection: -
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Current Rating (Amps): -
Voltage Rating: -
