850-90-008-20-001000
Mill-Max Manufacturing Corp.
Mill-Max Manufacturing Corp.
CONN HEADER R/A 8POS 1.27MM
$12.02
Available to order
Reference Price (USD)
50+
$13.03200
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

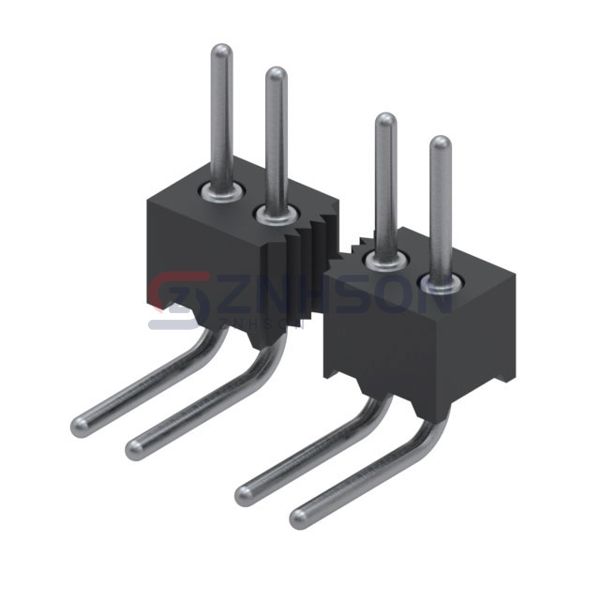

The 850-90-008-20-001000 by Mill-Max Manufacturing Corp. is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 850-90-008-20-001000 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Mill-Max Manufacturing Corp. ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 8
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.118" (3.00mm)
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: -
- Insulation Height: 0.087" (2.20mm)
- Contact Shape: Circular
- Contact Finish - Mating: Tin-Lead
- Contact Finish Thickness - Mating: 200.0µin (5.08µm)
- Contact Finish - Post: Tin-Lead
- Contact Material: Brass Alloy
- Insulation Material: Polyamide (PA46), Nylon 4/6
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
