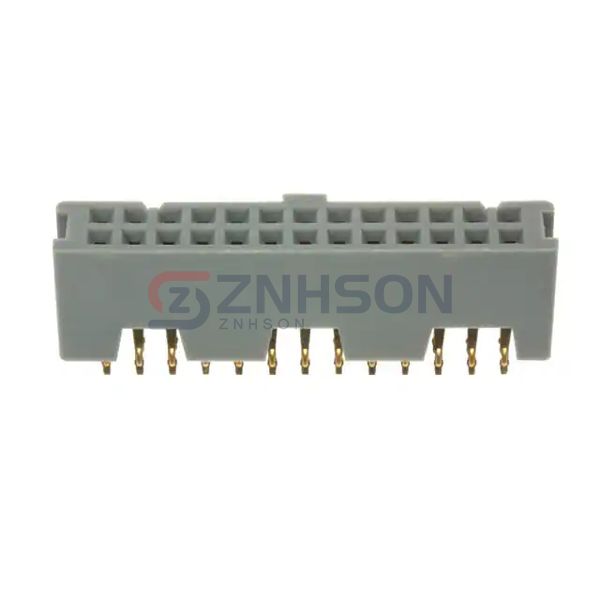

8526-4500PL
3M
3M
CONN RCPT 26POS 0.1 GOLD PCB
$6.44
Available to order
Reference Price (USD)
1+
$5.48000
10+
$5.26100
100+
$4.38400
500+
$3.72640
1,000+
$3.17840
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 8526-4500PL 3M Rectangular Connectors - Headers, Receptacles, and Female Sockets provide reliable solutions for high-speed data and power transmission. With advanced shielding and low insertion force, these connectors are ideal for data storage, networking hardware, and gaming consoles. Their high-reliability design ensures performance in servers, routers, and VR systems. 3M connectors are the preferred choice for engineers seeking quality and durability in high-tech applications.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Female Socket
- Style: Board to Board or Cable
- Number of Positions: 26
- Number of Positions Loaded: All
- Pitch - Mating: 0.100" (2.54mm)
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Mounting Type: Through Hole
- Termination: Kinked Pin, Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 12.0µin (0.30µm)
- Insulation Color: Gray
- Insulation Height: 0.425" (10.80mm)
- Contact Length - Post: 0.110" (2.79mm)
- Operating Temperature: -55°C ~ 105°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Gold
- Mated Stacking Heights: -
- Ingress Protection: -
- Features: Polarizing Key
- Current Rating (Amps): 1A
- Voltage Rating: 1000V
