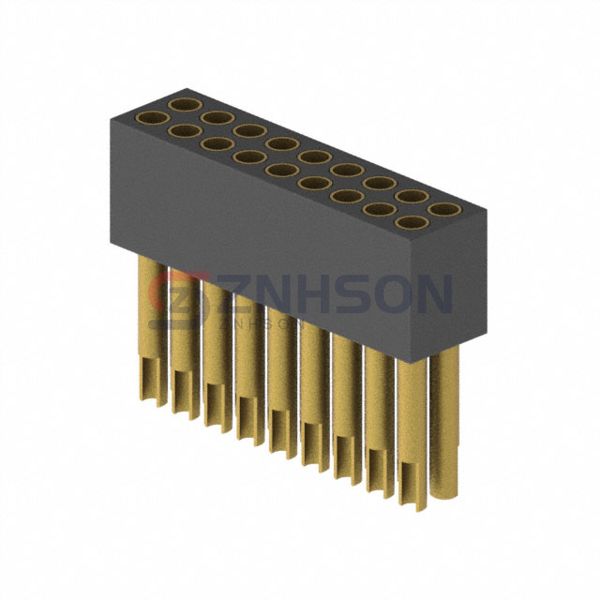

853-13-018-10-003000
Mill-Max Manufacturing Corp.
Mill-Max Manufacturing Corp.
CONN RCPT 18POS 0.05 GOLD PCB
$8.71
Available to order
Reference Price (USD)
1+
$7.73000
44+
$6.76000
132+
$6.11614
528+
$5.15040
1,012+
$4.50660
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 853-13-018-10-003000 Mill-Max Manufacturing Corp. Rectangular Connectors - Headers, Receptacles, and Female Sockets offer superior connectivity solutions for modern electronics. Designed with versatility in mind, these connectors support high-speed data transfer and power delivery. Their compact design and rugged build make them suitable for aerospace, military, and IoT applications. Whether you need board-to-board, cable-to-board, or wire-to-wire connections, Mill-Max Manufacturing Corp. provides reliable options. Examples include avionics systems, defense equipment, and smart home devices.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Female Socket
- Style: Board to Board
- Number of Positions: 18
- Number of Positions Loaded: All
- Pitch - Mating: 0.050" (1.27mm)
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Mounting Type: Through Hole
- Termination: Solder Cup
- Fastening Type: Push-Pull
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Insulation Color: Black
- Insulation Height: 0.149" (3.78mm)
- Contact Length - Post: 0.191" (4.85mm)
- Operating Temperature: -55°C ~ 125°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Gold
- Mated Stacking Heights: -
- Ingress Protection: -
- Features: -
- Current Rating (Amps): 3A
- Voltage Rating: -
