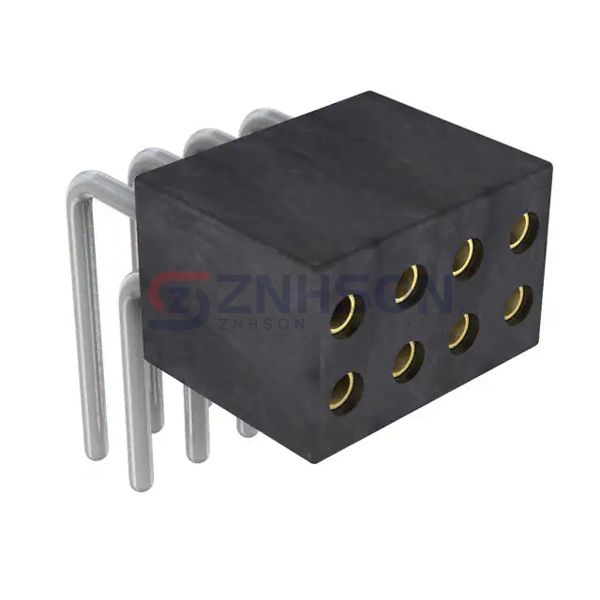

853-87-008-20-001101
Preci-Dip
Preci-Dip
CONN SOCKET 8P 0.05 GOLD PCB R/A
$2.02
Available to order
Reference Price (USD)
1+
$1.46000
10+
$1.32900
100+
$1.13940
500+
$0.94950
1,000+
$0.81386
5,000+
$0.72162
10,000+
$0.70534
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 853-87-008-20-001101 Preci-Dip Rectangular Connectors - Headers, Receptacles, and Female Sockets are designed for precision and reliability in critical applications. Featuring gold-plated contacts, polarized housings, and waterproof options, these connectors excel in marine, oil & gas, and transportation industries. Their robust design prevents misalignment and ensures long-term performance. Examples include underwater sensors, railway signaling systems, and offshore drilling equipment. Choose Preci-Dip for connectors that meet the highest industry standards.
Specifications
- Product Status: Active
- Connector Type: Socket
- Contact Type: Female Socket
- Style: Board to Board
- Number of Positions: 8
- Number of Positions Loaded: All
- Pitch - Mating: 0.050" (1.27mm)
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Insulation Color: Black
- Insulation Height: 0.128" (3.25mm)
- Contact Length - Post: 0.130" (3.30mm)
- Operating Temperature: -55°C ~ 125°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Tin
- Mated Stacking Heights: -
- Ingress Protection: -
- Features: -
- Current Rating (Amps): 1A
- Voltage Rating: -
