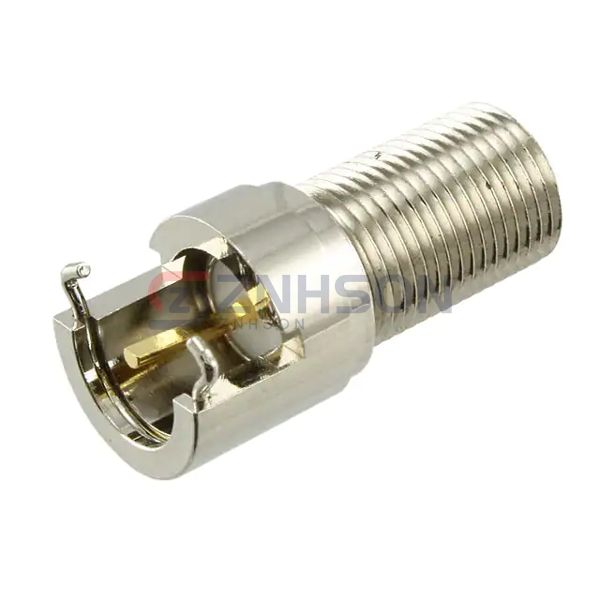

861V509ER6
Winchester Interconnect
Winchester Interconnect
CONN F JACK STR 75 OHM EDGE MNT
$13.59
Available to order
Reference Price (USD)
1+
$8.61000
50+
$7.11360
100+
$6.92640
250+
$6.17760
500+
$6.08400
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for excellence, the 861V509ER6 from Winchester Interconnect sets new standards in Coaxial Connectors (RF) performance. These connectors utilize ultra-precision machining to achieve consistent 50 or 75 impedance matching across all mating cycles. The product line includes SMA, N-type, TNC, and BNC variants with options for straight, right-angle, and bulkhead mounting. Specialized versions feature phase-matched designs for critical array applications. Key industries served include: Satellite communication ground stations Electronic warfare systems High-speed data acquisition systems Microwave radio links. The 861V509ER6 series stands out with its hybrid design combining the durability of metal connectors with the weight savings of composite materials, ideal for airborne electronic systems.
Specifications
- Product Status: Active
- Connector Style: F Type
- Connector Type: Jack, Female Socket
- Contact Termination: Solder
- Shield Termination: Solder
- Impedance: 75Ohm
- Mounting Type: Board Edge, End Launch
- Mounting Feature: -
- Cable Group: RG-6, 59
- Fastening Type: Threaded
- Frequency - Max: 3 GHz
- Number of Ports: 1
- Features: -
- Housing Color: Silver
- Ingress Protection: -
- Center Contact Material: Brass
