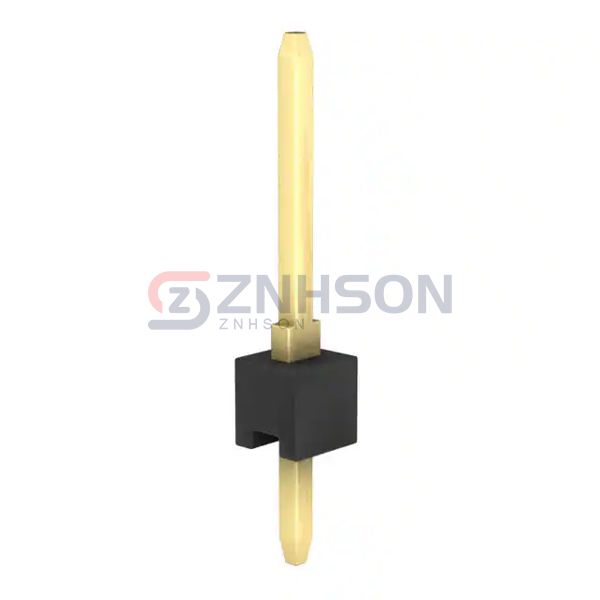

87220-1
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 1POS
$1.70
Available to order
Reference Price (USD)
1+
$1.38000
10+
$1.21200
100+
$1.04530
500+
$0.85526
1,000+
$0.76022
5,000+
$0.66520
10,000+
$0.63194
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 87220-1 male pin header by TE Connectivity AMP Connectors provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. TE Connectivity AMP Connectors guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: -
- Number of Positions: 1
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.125" (3.18mm)
- Overall Contact Length: 0.533" (13.55mm)
- Insulation Height: 0.090" (2.29mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Thermoplastic
- Features: -
- Operating Temperature: -65°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Samtec Inc.
TMM-112-04-F-D-SM-A-P-TR
Samtec Inc.
TSM-107-01-S-DH-003
Molex
0026481220
TE Connectivity AMP Connectors
103167-2
Preci-Dip
850-10-029-10-001101
Sullins Connector Solutions
PBC34SAGN
Samtec Inc.
EHT-120-01-S-D-RA-40
Samtec Inc.
FTSH-129-02-F-DV-A
Samtec Inc.

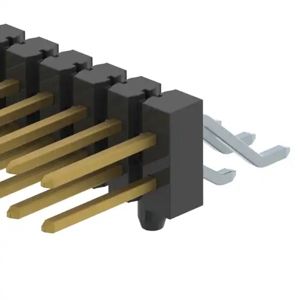

TSM-130-02-S-DH-A-P
