87232-6
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER R/A 6POS 2.54MM
$3.37
Available to order
Reference Price (USD)
1+
$2.65000
10+
$2.54300
100+
$2.11940
500+
$1.80150
1,000+
$1.53658
5,000+
$1.37762
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the 87232-6 rectangular connector header from TE Connectivity AMP Connectors. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the 87232-6 is perfect for automotive, industrial, and consumer electronics. TE Connectivity AMP Connectors ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 6
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.110" (2.79mm)
- Overall Contact Length: -
- Insulation Height: 0.138" (3.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA), Nylon, Glass Filled
- Features: -
- Operating Temperature: -65°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Molex
0022046244
Molex
0717640504
Samtec Inc.
FTSH-110-01-LM-DV-K-P
Samtec Inc.
TSM-120-04-T-SH-K
Samtec Inc.
FTS-140-02-L-DV-P
Molex
0430451208
Harwin Inc.
M20-9760446
Preci-Dip
350-10-119-01-714101

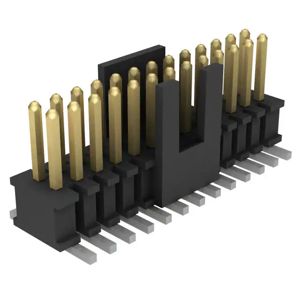

Samtec Inc.
