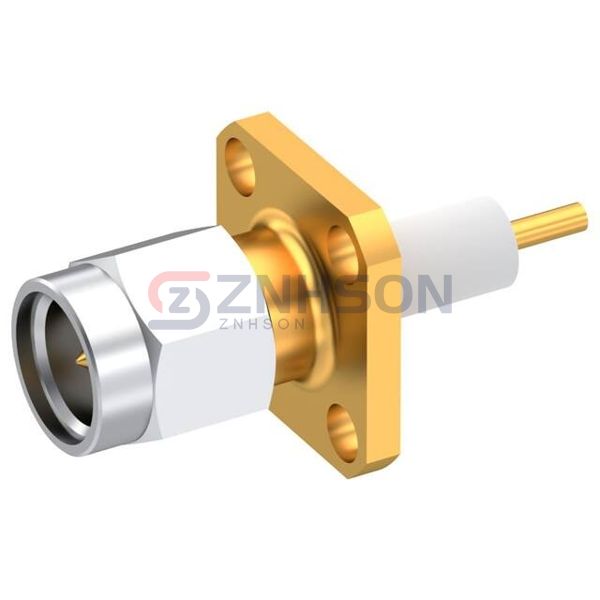

9009-1113-000
Radiall USA, Inc.
Radiall USA, Inc.
SMA / STRAIGHT PLUG RECEPTACLE M
$35.42
Available to order
Reference Price (USD)
1+
$35.41760
500+
$35.063424
1000+
$34.709248
1500+
$34.355072
2000+
$34.000896
2500+
$33.64672
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 9009-1113-000 from Radiall USA, Inc. represents the pinnacle of Coaxial Connectors (RF) innovation. This series incorporates temperature-compensated designs that maintain stable electrical characteristics across extreme thermal cycles. Featuring industry-leading return loss (>20dB typical) and insertion loss (<0.1dB per connection), these connectors are ideal for sensitive measurement applications. The product family includes field-installable, panel-mount, and PCB receptacle variants. Primary application areas: Military radar systems Quantum cascade lasers EMC test chambers Cellular base station radios. The 9009-1113-000 variant offers unique angled cable exits that simplify routing in space-constrained equipment enclosures while maintaining impedance control.
Specifications
- Product Status: Active
- Connector Style: SMA
- Connector Type: Plug, Male Pin
- Contact Termination: Solder
- Shield Termination: Solder
- Impedance: 50Ohm
- Mounting Type: Panel Mount, Through Hole
- Mounting Feature: Flange
- Cable Group: -
- Fastening Type: Threaded
- Frequency - Max: 18 GHz
- Number of Ports: 1
- Features: Extended Insulation
- Housing Color: Gold
- Ingress Protection: -
- Center Contact Material: Beryllium Copper
