90156-AS
Preci-Dip
Preci-Dip

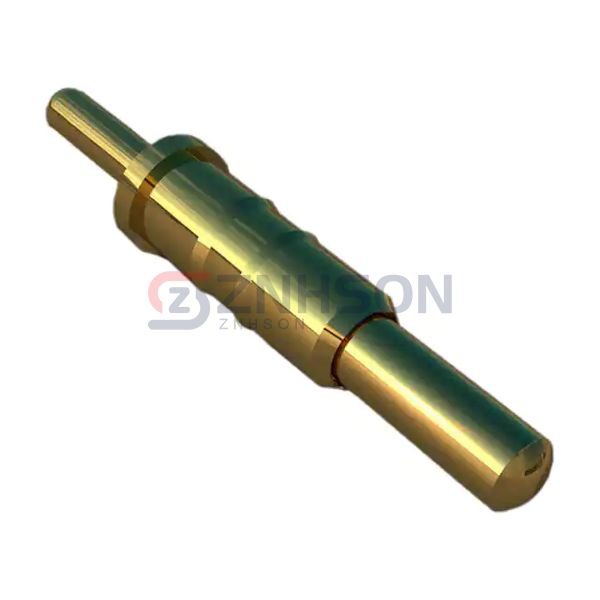

CONTACT SPRING LOADED T/H GOLD
$0.89
Available to order
Reference Price (USD)
1+
$0.68000
10+
$0.63600
25+
$0.57200
50+
$0.50860
100+
$0.48740
250+
$0.44500
500+
$0.42380
1,000+
$0.34964
2,500+
$0.31785
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Precision meets versatility in Preci-Dip's 90156-AS modular Spring Loaded Contact system. This innovative Pressure Connectors solution allows engineers to mix-and-match plunger heads, spring forces, and housing materials for customized interconnect profiles. The category shines in prototyping applications, research lab equipment, and low-volume manufacturing with quick-ship configurations. Notable implementations include university robotics projects, particle physics detector interfaces, and Mars rover testbed connections. 90156-AS supports unique requirements like ultra-low-force (10gf) contacts for delicate membrane switches or high-insertion-force (500gf) versions for power distribution modules - all with gold-over-nickel plating for superior corrosion resistance.
Specifications
- Product Status: Active
- Contact Type: Sleeve & Plunger (Pogo Pins)
- Mounting Type: Through Hole
- Maximum Working Height: 0.295" (7.49mm)
- Recommended Working Height: -
- Minimum Working Height: 0.240" (6.10mm)
- Pad Layout Dimension: Circular - 0.072" (1.83mm) (TH)
- Operating Force - Initial: 25.49gf
- Operating Force - Mid Compression: 86.68gf
- Plunger Size: 0.042" (1.07mm) Dia
- Features: -
- Mating Cycles: 40000
- Contact Material: Brass Alloy
- Contact Finish: Gold
- Contact Finish Thickness: 20.0µin (0.51µm)
