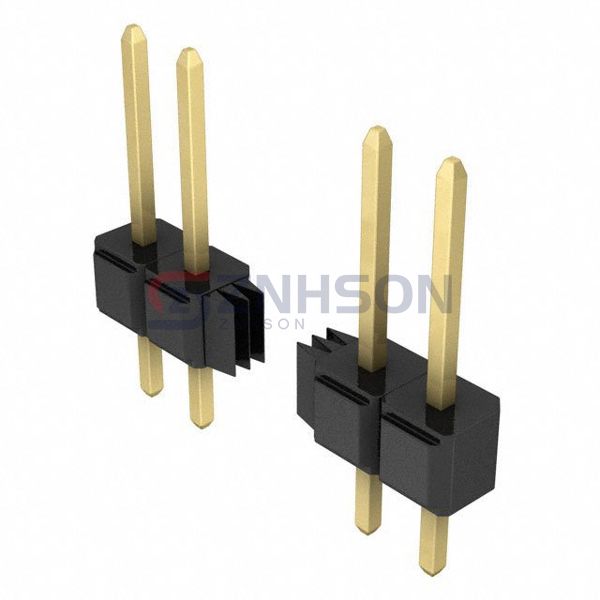

929450-01-19-I
3M
3M
CONN HEADER VERT 19POS 2.54MM
$4.50
Available to order
Reference Price (USD)
1+
$4.28000
10+
$4.11000
25+
$3.76760
50+
$3.59640
100+
$3.42510
250+
$2.99692
500+
$2.91130
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the 929450-01-19-I rectangular connector header from 3M. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the 929450-01-19-I is perfect for automotive, industrial, and consumer electronics. 3M ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 19
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.295" (7.49mm)
- Contact Length - Post: 0.130" (3.30mm)
- Overall Contact Length: 0.535" (13.59mm)
- Insulation Height: 0.110" (2.79mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Polybutylene Terephthalate (PBT), Polyester, Glass Filled
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.5A
- Voltage Rating: -
