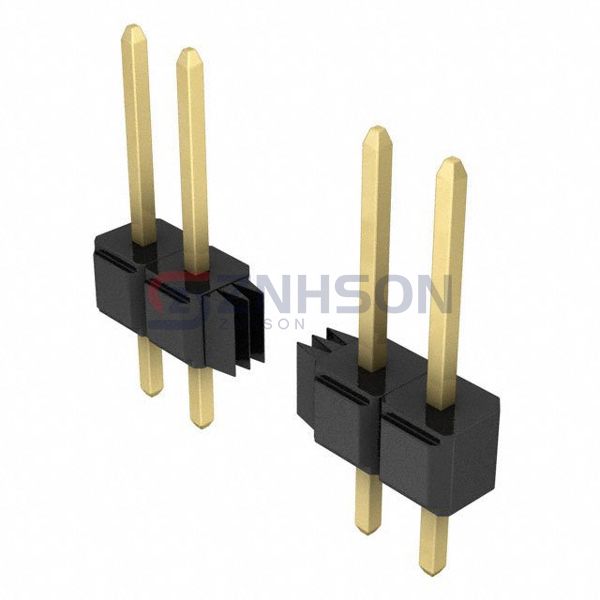

929450-01-23-I
3M
3M
CONN HEADER VERT 23POS 2.54MM
$5.44
Available to order
Reference Price (USD)
1+
$5.18000
10+
$4.97500
25+
$4.56080
50+
$4.35340
100+
$4.14610
250+
$3.62788
500+
$3.52422
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 929450-01-23-I by 3M is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. 3M delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 23
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.295" (7.49mm)
- Contact Length - Post: 0.130" (3.30mm)
- Overall Contact Length: 0.535" (13.59mm)
- Insulation Height: 0.110" (2.79mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Polybutylene Terephthalate (PBT), Polyester, Glass Filled
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.5A
- Voltage Rating: -
Related Products
Preci-Dip
892-18-064-20-002101
Preci-Dip
800-V3-007-20-101101
Mill-Max Manufacturing Corp.
335-10-109-00-160000
Samtec Inc.
TSW-104-08-T-S-RA
TE Connectivity AMP Connectors
1-2336678-8
Preci-Dip
892-70-052-10-001101
Samtec Inc.

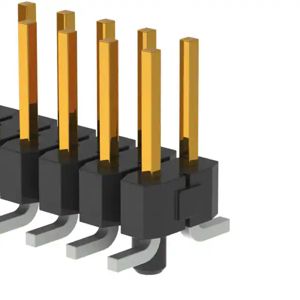

TSM-150-01-L-DV-A
Samtec Inc.

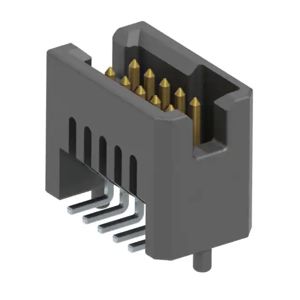

TFM-105-12-F-D-A-K-TR
