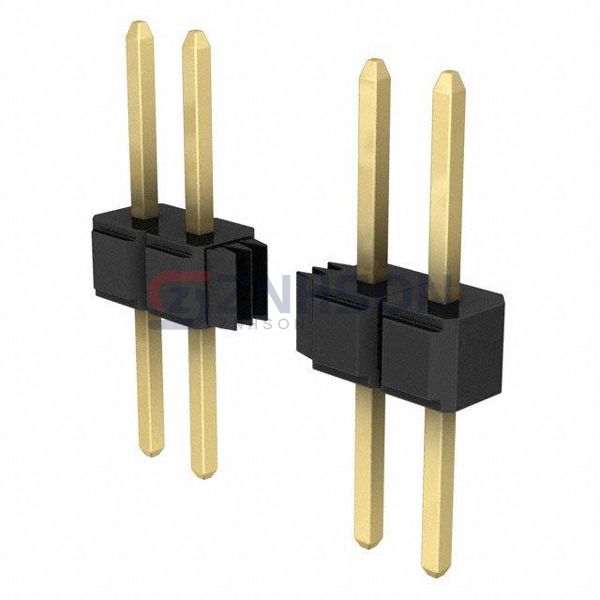

929647-02-16-EU
3M
3M
CONN HEADER VERT 16POS 2.54MM
$3.99
Available to order
Reference Price (USD)
1+
$3.80000
10+
$3.64500
25+
$3.34160
50+
$3.18980
100+
$3.03790
250+
$2.65812
500+
$2.58218
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 929647-02-16-EU by 3M is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 929647-02-16-EU supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. 3M ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 16
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.235" (5.97mm)
- Contact Length - Post: 0.210" (5.33mm)
- Overall Contact Length: 0.545" (13.84mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.5A
- Voltage Rating: -
Related Products
Samtec Inc.
TSW-102-05-F-S
Preci-Dip
800-80-015-10-002101
Harwin Inc.
M80-8511045

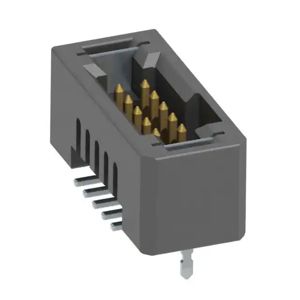

Samtec Inc.
TFM-120-22-F-D-A-K-TR
TE Connectivity AMP Connectors
1-440053-0
Amphenol ICC (FCI)
67996-136HLF
Molex
0554600772

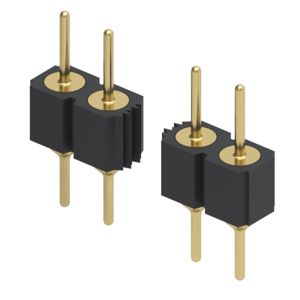

Mill-Max Manufacturing Corp.
