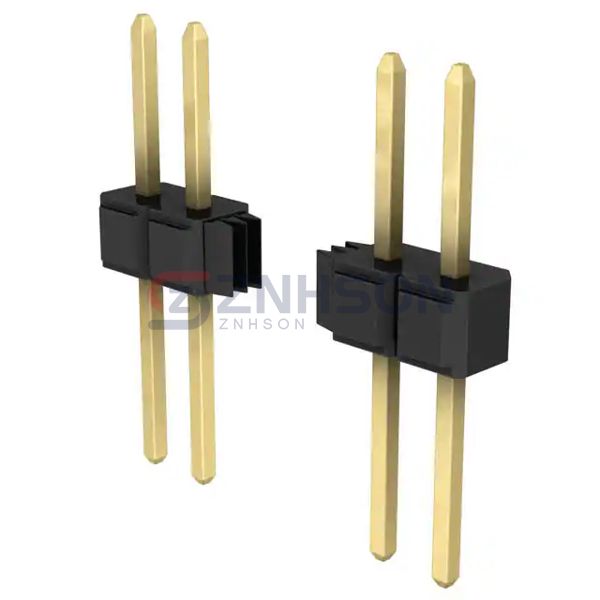

929647-08-22-EU
3M
3M
CONN HEADER VERT 22POS 2.54MM
$5.48
Available to order
Reference Price (USD)
1+
$5.22000
10+
$5.01200
25+
$4.59480
50+
$4.38600
100+
$4.17710
250+
$3.65492
500+
$3.55050
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 929647-08-22-EU by 3M is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 929647-08-22-EU supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. 3M ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 22
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.235" (5.97mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.5A
- Voltage Rating: -
Related Products
Samtec Inc.
TMM-120-01-LM-D-SM-A-P
Samtec Inc.
TSW-135-08-L-S-RA
Samtec Inc.
FTE-108-03-G-DV-P
TE Connectivity AMP Connectors

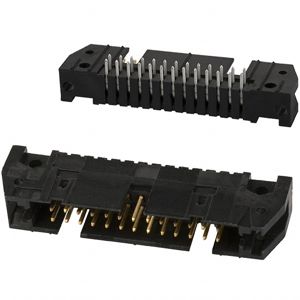

102160-6
Molex

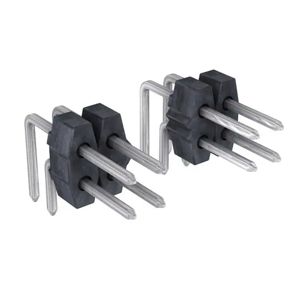

0901220126
Preci-Dip

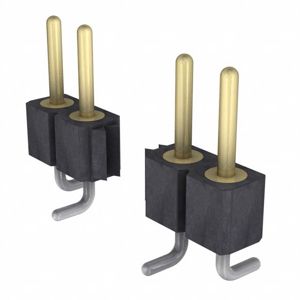

800-V3-044-30-001101
HARTING

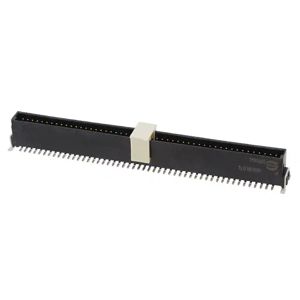

15121002601000
