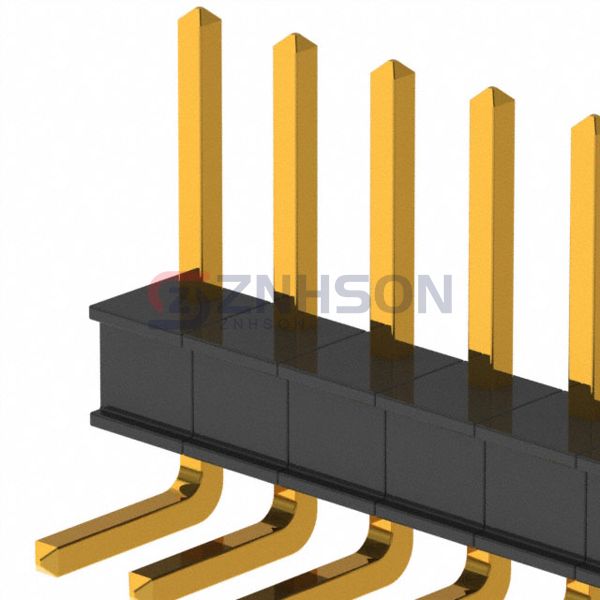

929648-01-18-EU
3M
3M
CONN HEADER R/A 18POS 2.54MM
$3.48
Available to order
Reference Price (USD)
1+
$3.31000
10+
$3.18000
25+
$2.91440
50+
$2.78200
100+
$2.64960
250+
$2.31840
500+
$2.25216
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 929648-01-18-EU by 3M is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 929648-01-18-EU supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. 3M ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 18
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.235" (5.97mm)
- Contact Length - Post: 0.110" (2.79mm)
- Overall Contact Length: -
- Insulation Height: 0.115" (2.92mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.5A
- Voltage Rating: -
Related Products
Samtec Inc.
ZSS-124-02-G-D-640
Samtec Inc.
FTMH-140-02-L-DV-ES-TR
Preci-Dip
800-80-010-40-001101
Molex
70541-0079
Harwin Inc.
M80-8430245
Molex
53014-1510
Preci-Dip
350-80-109-00-018101
Samtec Inc.
MTSW-103-07-T-S-200
Samtec Inc.

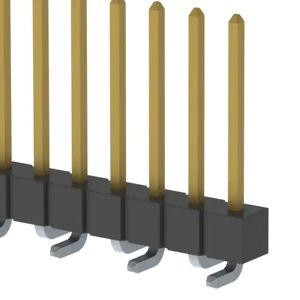

TSM-111-03-S-SV-P-TR
