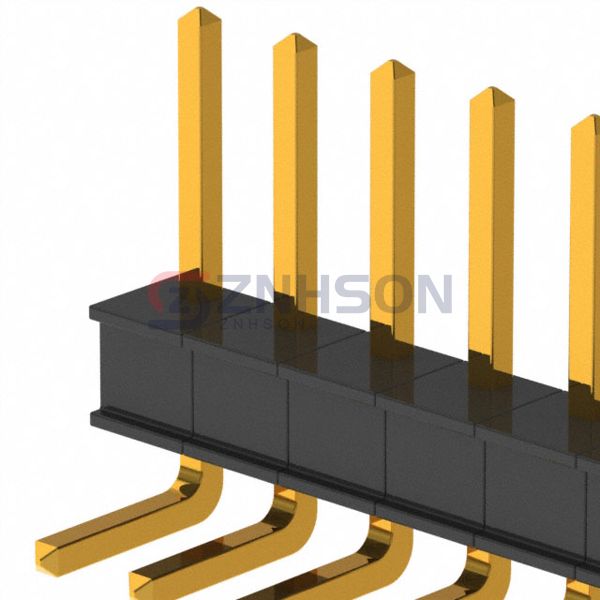

929648-01-21-EU
3M
3M
CONN HEADER R/A 21POS 2.54MM
$4.06
Available to order
Reference Price (USD)
1+
$3.86000
10+
$3.70900
25+
$3.40040
50+
$3.24580
100+
$3.09120
250+
$2.70480
500+
$2.62752
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 929648-01-21-EU by 3M is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 929648-01-21-EU supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. 3M ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 21
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.235" (5.97mm)
- Contact Length - Post: 0.110" (2.79mm)
- Overall Contact Length: -
- Insulation Height: 0.115" (2.92mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.5A
- Voltage Rating: -
Related Products
Samtec Inc.
TSM-117-01-S-DV-LC
Preci-Dip
850-80-004-40-251191
Samtec Inc.
HTSW-101-07-G-D
Samtec Inc.
TSM-108-01-S-DV-LC
Samtec Inc.
FTSH-140-05-F-DV
Samtec Inc.
TSW-111-07-T-D
TE Connectivity AMP Connectors
3-1971032-2
Preci-Dip

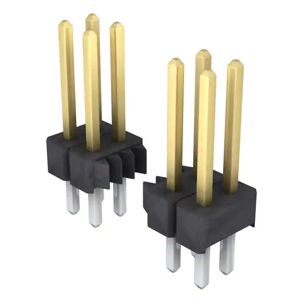

892-18-052-10-003101
