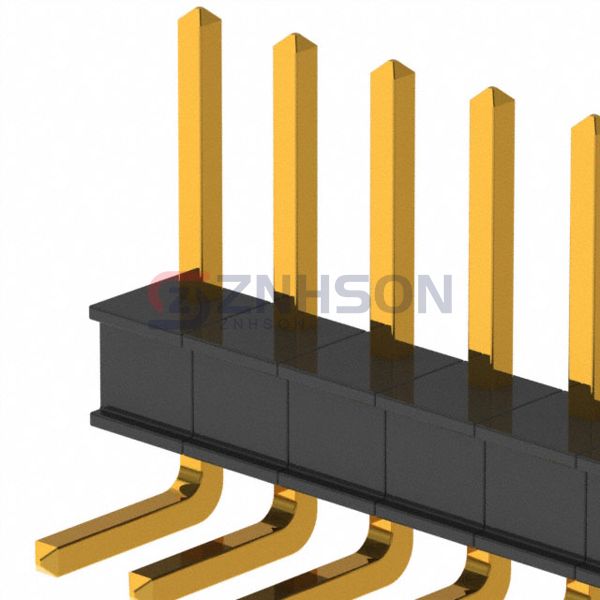

929648-01-24-I
3M
3M
CONN HEADER R/A 24POS 2.54MM
$6.84
Available to order
Reference Price (USD)
1+
$6.51000
10+
$6.24100
25+
$5.69840
50+
$5.42720
100+
$5.15580
250+
$4.61312
500+
$4.34176
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the 929648-01-24-I rectangular connector header by 3M. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the 929648-01-24-I ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust 3M for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 24
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.235" (5.97mm)
- Contact Length - Post: 0.110" (2.79mm)
- Overall Contact Length: -
- Insulation Height: 0.115" (2.92mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Polybutylene Terephthalate (PBT), Polyester, Glass Filled
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.5A
- Voltage Rating: -
Related Products
Samtec Inc.
FTSH-150-03-F-D
TE Connectivity AMP Connectors
147279-6
TE Connectivity AMP Connectors
350582-4
Samtec Inc.
TSM-120-03-S-DV-P-TR
Preci-Dip
892-80-062-10-001101
Samtec Inc.
MMT-105-01-T-DH-P-TR
TE Connectivity AMP Connectors
1586037-8
Samtec Inc.

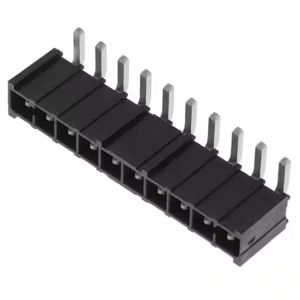

IPBT-110-H1-T-S-RA-K
