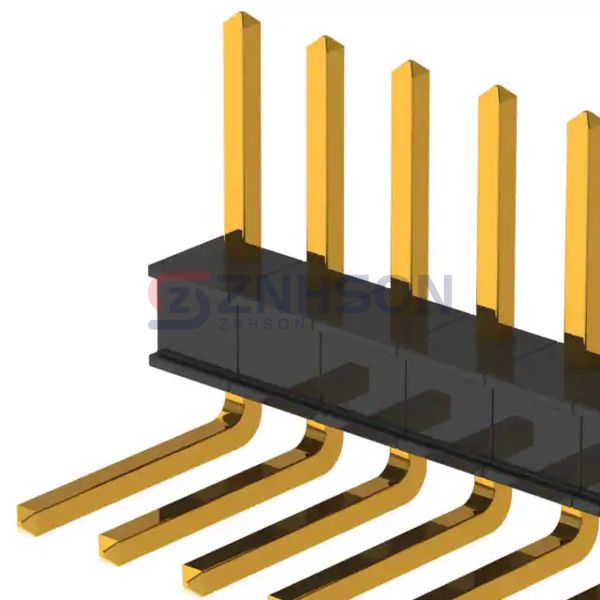

929648-04-16-EU
3M
3M
CONN HEADER R/A 16POS 2.54MM
$3.09
Available to order
Reference Price (USD)
1+
$2.94000
10+
$2.82600
25+
$2.59080
50+
$2.47300
100+
$2.35520
250+
$2.06080
500+
$2.00192
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the 929648-04-16-EU rectangular connector header by 3M. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the 929648-04-16-EU ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust 3M for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 16
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.235" (5.97mm)
- Contact Length - Post: 0.225" (5.72mm)
- Overall Contact Length: -
- Insulation Height: 0.115" (2.92mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.5A
- Voltage Rating: -
Related Products
Samtec Inc.
MMT-115-02-T-MT
Cvilux USA
CI1107M1HR0-NH
Samtec Inc.
FTSH-130-01-F-D-RA
Samtec Inc.
TSM-120-01-LM-DV-LC
TE Connectivity AMP Connectors
4-103328-0-23
TE Connectivity AMP Connectors
3-917657-3
Samtec Inc.

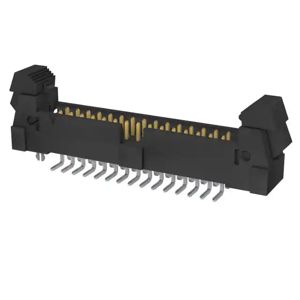

EHT-115-01-S-D-SM-LC-K-TR
Mill-Max Manufacturing Corp.

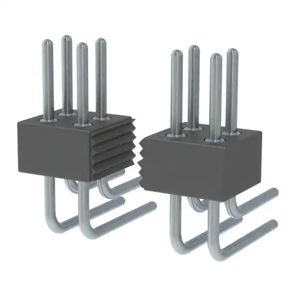

852-90-096-20-001000
