929665-01-10-I
3M
3M
CONN HEADER VERT 20POS 2.54MM
$4.00
Available to order
Reference Price (USD)
1+
$3.81000
10+
$3.65400
25+
$3.35000
50+
$3.19760
100+
$3.04530
250+
$2.66468
500+
$2.58854
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 929665-01-10-I by 3M is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 929665-01-10-I supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. 3M ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.235" (5.97mm)
- Contact Length - Post: 0.110" (2.79mm)
- Overall Contact Length: 0.445" (11.30mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Polybutylene Terephthalate (PBT), Polyester, Glass Filled
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.5A
- Voltage Rating: -
Related Products
Samtec Inc.
TFM-115-22-SM-D-A-P
Preci-Dip
450-10-208-01-899101
Sullins Connector Solutions
PREC039SFAN-RC
Samtec Inc.
TSM-130-04-T-SV
Sullins Connector Solutions
NREC016SABC-M30RC
Samtec Inc.
ZSS-136-02-S-D-640
Molex
0559173810
Samtec Inc.
FTMH-140-02-H-DV-P-TR
Samtec Inc.

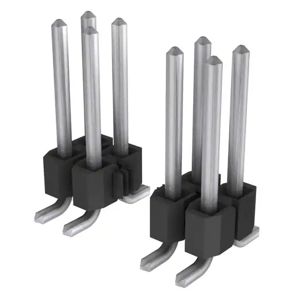

TSM-105-02-TM-DV-P
