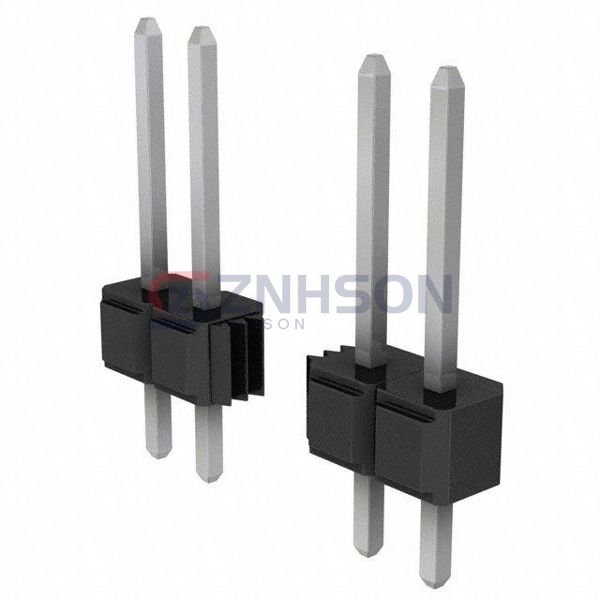

929700-01-07-RK
3M
3M
CONN HEADER VERT 7POS 2.54MM
$0.78
Available to order
Reference Price (USD)
1+
$0.74000
10+
$0.69400
25+
$0.62480
50+
$0.55560
100+
$0.53240
250+
$0.48608
500+
$0.46294
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 929700-01-07-RK by 3M is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. 3M delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 7
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.110" (2.79mm)
- Overall Contact Length: 0.528" (13.42mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 200.0µin (5.08µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.5A
- Voltage Rating: -
Related Products
Amphenol ICC (FCI)
77313-824-36LF
Molex
0015917030
TE Connectivity AMP Connectors
207119-8
Samtec Inc.
TSW-136-17-T-S
3M

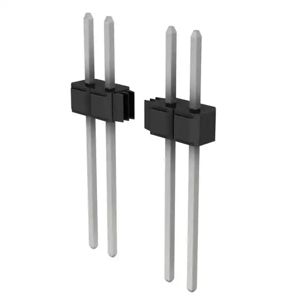

929834-04-06
Samtec Inc.

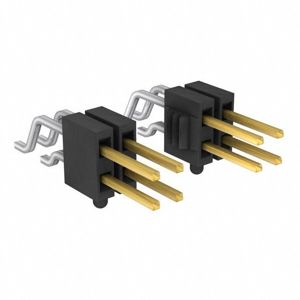

FTSH-125-01-F-DH-A-C-TR
Harwin Inc.

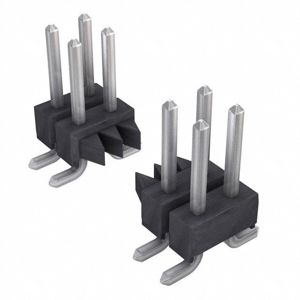

M20-8760546
Samtec Inc.

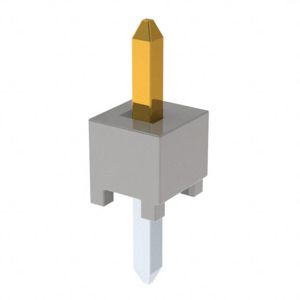

HTSW-101-05-LM-S
Hirose Electric Co Ltd

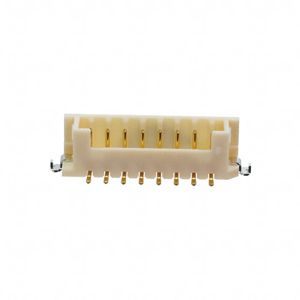

DF3E-8P-2V(54)
