929700-01-35-RK
3M
3M
CONN HEADER VERT 35POS 2.54MM
$3.04
Available to order
Reference Price (USD)
1+
$2.89000
10+
$2.77800
25+
$2.54600
50+
$2.43040
100+
$2.31470
250+
$2.02532
500+
$1.96746
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

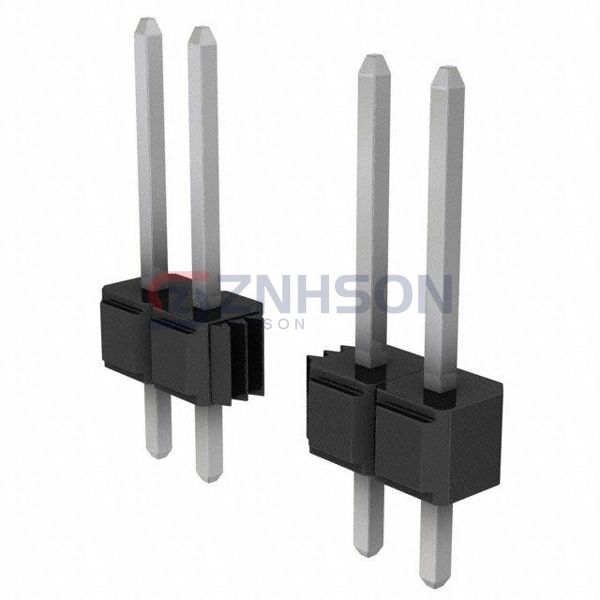

The 929700-01-35-RK from 3M is a high-quality rectangular connector header designed for reliable interconnections in various electronic applications. These male pin headers feature a robust construction, ensuring secure and stable connections. Ideal for PCB mounting, the 929700-01-35-RK offers excellent electrical performance and durability. With options for different pin counts and pitches, this connector is versatile for numerous industrial and consumer electronics. Applications include automotive systems, telecommunications equipment, and home appliances. Choose 3M for precision-engineered connectors that meet global standards.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 35
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.110" (2.79mm)
- Overall Contact Length: 0.528" (13.42mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 200.0µin (5.08µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.5A
- Voltage Rating: -
