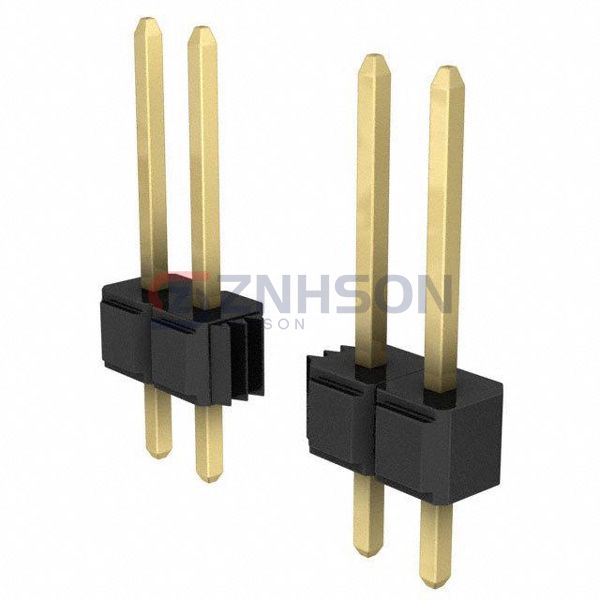

929705-01-13-EU
3M
3M
CONN HEADER VERT 13POS 2.54MM
$2.57
Available to order
Reference Price (USD)
1+
$2.44000
10+
$2.21700
25+
$2.08120
50+
$1.99060
100+
$1.90010
250+
$1.71912
500+
$1.58340
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 929705-01-13-EU by 3M is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. 3M delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 13
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.110" (2.79mm)
- Overall Contact Length: 0.528" (13.42mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.5A
- Voltage Rating: -
Related Products
Preci-Dip
850-80-020-10-001101
Samtec Inc.
TMM-105-04-S-S
3M
929710-01-14
Samtec Inc.
TSW-136-05-L-D
Preci-Dip
892-70-046-20-001101
Samtec Inc.
TSM-128-01-L-SH-A-P
TE Connectivity AMP Connectors
6-146128-2

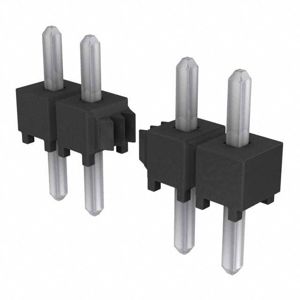

Samtec Inc.
TSW-135-05-T-S

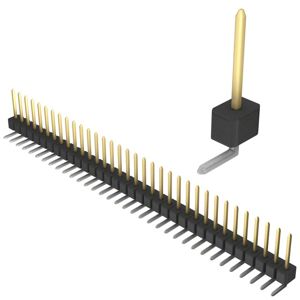

Sullins Connector Solutions
