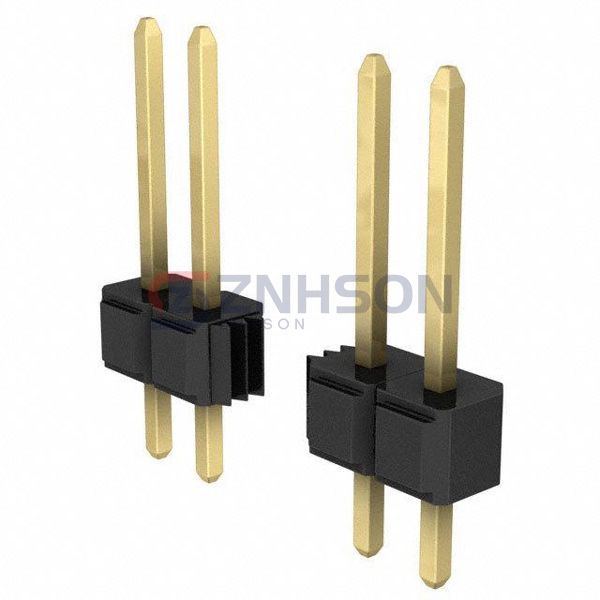

929705-01-18-EU
3M
3M
CONN HEADER VERT 18POS 2.54MM
$3.29
Available to order
Reference Price (USD)
1+
$3.13000
10+
$3.00700
25+
$2.75600
50+
$2.63080
100+
$2.50560
250+
$2.19240
500+
$2.12976
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 929705-01-18-EU by 3M is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. 3M delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 18
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.110" (2.79mm)
- Overall Contact Length: 0.528" (13.42mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.5A
- Voltage Rating: -
Related Products
Samtec Inc.
TD-112-G-A
Preci-Dip
350-10-103-00-006101
Sullins Connector Solutions
PBC10DABN
Samtec Inc.
TSW-116-06-S-D
Samtec Inc.

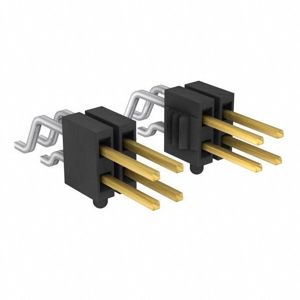

FTSH-105-02-L-DH-A-C-TR
NorComp Inc.

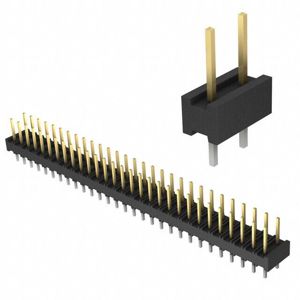

26645801RP2
Samtec Inc.

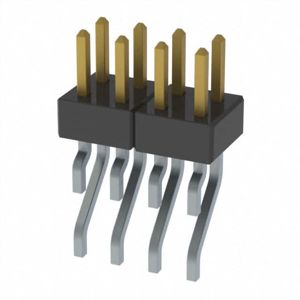

MMT-104-01-L-DH-TR
Samtec Inc.

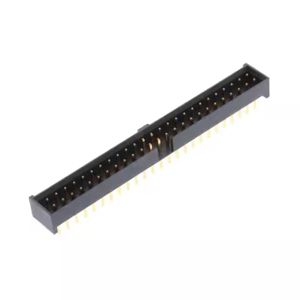

LTMM-125-02-G-D
