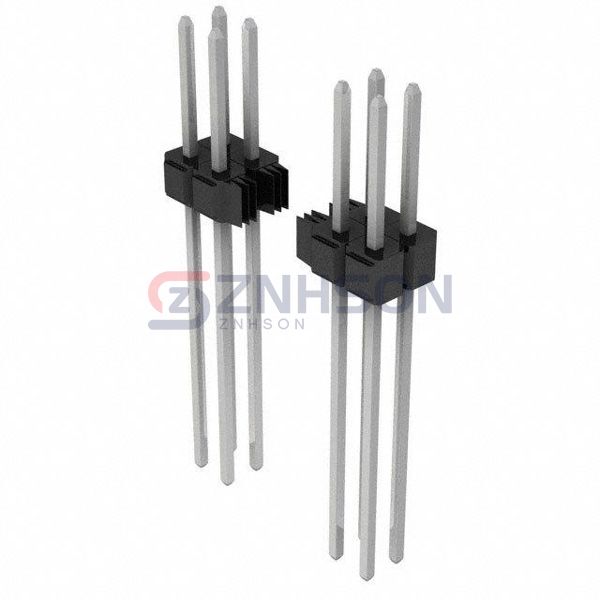

929710-06-09
3M
3M
CONN HEADER VERT 18POS 2.54MM
$2.21
Available to order
Reference Price (USD)
1+
$2.21000
10+
$2.00500
25+
$1.88240
50+
$1.80040
100+
$1.71860
250+
$1.55496
500+
$1.43220
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 929710-06-09 by 3M is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. 3M delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 18
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.710" (18.03mm)
- Overall Contact Length: 1.128" (28.65mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin-Lead
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: -
- Contact Material: Copper Alloy
- Insulation Material: Polybutylene Terephthalate (PBT), Polyester, Glass Filled
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.5A
- Voltage Rating: -
Related Products
Adam Tech
DML-24-A-H-T-A
Preci-Dip
830-80-031-40-001101
Amphenol ICC (FCI)
77313-401-60LF
Samtec Inc.
FTS-132-01-LM-DV-P
HARTING

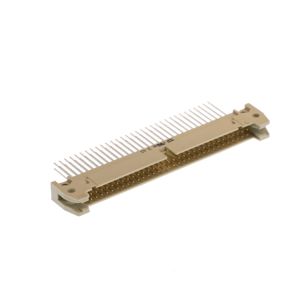

09185646927
Harwin Inc.

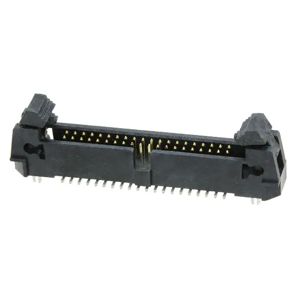

M50-3652042R
Sullins Connector Solutions

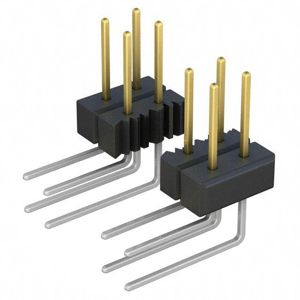

PBC06DBBN
HARTING

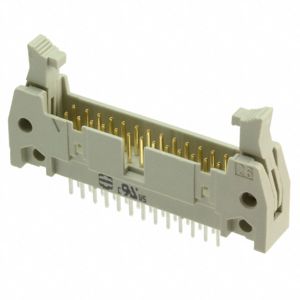

09185267902
3M

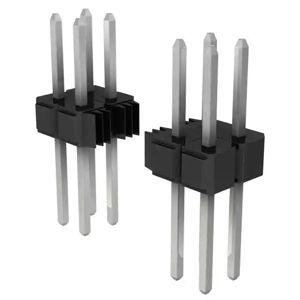

929836-08-05
