929715-06-32-I
3M
3M
CONN HEADER VERT 64POS 2.54MM
$15.28
Available to order
Reference Price (USD)
1+
$15.28000
10+
$13.89200
25+
$13.54480
50+
$12.50300
100+
$11.80840
250+
$10.76652
500+
$10.07188
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

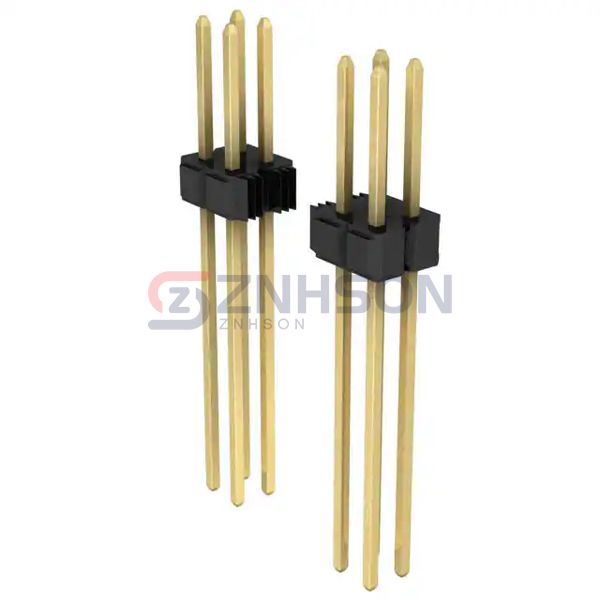

The 929715-06-32-I by 3M is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. 3M delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 64
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.710" (18.03mm)
- Overall Contact Length: 1.128" (28.65mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Polybutylene Terephthalate (PBT), Polyester, Glass Filled
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.5A
- Voltage Rating: -
